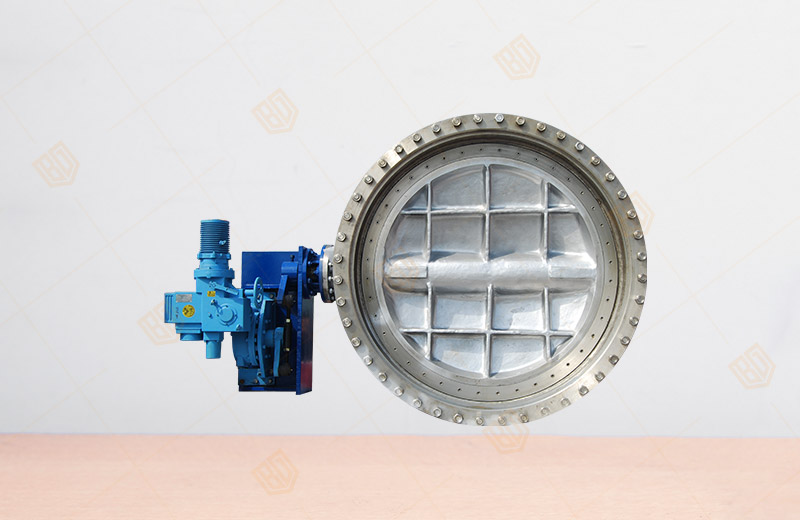

D943H Electric High Temp Butterfly Valve
Product overview
Product model: D943H
Nominal diameter: DN50~2000mm
Nominal pressure: PN0.6~4.0MPa
Applicable temperature: Carbon steel :-29℃~425℃ Stainless steel :-40℃~650℃
Applicable medium: water, air, natural gas, oil and weak corrosive fluid
Drive mode: worm gear drive, electric, pneumatic, hydraulic
Manufacturing standard: JB/T 8527-97
Flange standard: GB9113-2000
Structure length standard: GB12221-89
Inspection standard: GB/T 13927-92
D943H Electric High Temp Butterfly Valve Description:
D943H Electric High Temp Butterfly Valve produced and sold by Baigang valve group installed in the petroleum, chemical, food, medicine, textile, paper, water and electricity, ships, water supply and drainage, smelting and other systems , In all water, gas, oil, semi-fluid and solid powder pipelines and containers used as regulation and closure, can be installed in any horizontal or vertical pipelines. D343H Turbine metal hard sealing butterfly valve than the soft rubber sealing butterfly valve to help long life, the valve is usually carbon steel or stainless steel.
D943H Electric High Temp Butterfly Valve main performance parameters:
Nominal diameter | DN 50 ~ 2000mm | |||||
Nominal pressure | 0.6MPa | 1.0MPa | 1.6MPa | 2.5MPa | 4.0MPa | |
Test pressure PsMPa | Strength test | 0.9 | 1.5 | 2.4 | 3.75 | 6.0 |
Seal test | 0.66 | 1.1 | 1.76 | 2.75 | 4.4 | |
Gas seal test | 0.5 ~ 0.8 MPa | |||||
Suitable media | Water, oil, steam, gas, acid, alkali and so on | |||||
proper temperature | -40 ℃ ~ 570 ℃ |
D943H Electric High Temp Butterfly Valve main shape and connection dimensions:
D343H-10C, D343Y-10C, D341H-10C Worm Flanged Hard Sealing Butterfly Valve Connection Size:
The way to | Main dimensions | 0.25MPa | 0.6MPa | 1.0M Pa | ||||||||||||
mm | inch | L | H | H 1 | D | D 1 | Z-φd | b × f | D | D1 | Z-φd | b × f | D | D1 | Z-φ d | b × f |
50 | 2 | 108 | 75 | 200 | 140 | 110 | 4-φ14 | 16 × 3 | 140 | 110 | 4-φ14 | 16 × 3 | 165 | 125 | 4-φ18 | 20 × 3 |
65 | 2-1 / 2 | 112 | 93 | 210 | 160 | 130 | 4-φ14 | 16 × 3 | 160 | 130 | 4-φ14 | 16 × 3 | 185 | 145 | 4-φ18 | 20 × 3 |
80 | 3 | 114 | 98 | 226 | 190 | 150 | 4-φ18 | 18 × 3 | 190 | 150 | 4-φ18 | 18 × 3 | 200 | 160 | 8-φ18 | 20 × 3 |
100 | 4 | 127 | 130 | 250 | 210 | 170 | 4-φ18 | 18 × 3 | 210 | 170 | 4-φ18 | 18 × 3 | 220 | 180 | 8-φ18 | 22 × 3 |
125 | 5 | 140 | 165 | 295 | 240 | 200 | 8-φ18 | 20 × 3 | 240 | 200 | 8-φ18 | 20 × 3 | 250 | 210 | 8-φ18 | 22 × 3 |
150 | 6 | 140 | 175 | 315 | 260 | 225 | 8-φ18 | 20 × 3 | 265 | 225 | 8-φ18 | 20 × 3 | 285 | 240 | 8-φ22 | 24 × 3 |
200 | 8 | 152 | 220 | 380 | 320 | 280 | 8-φ18 | 22 × 3 | 320 | 280 | 8-φ18 | 22 × 3 | 340 | 295 | 8-φ22 | 24 × 3 |
250 | 10 | 165 | 250 | 405 | 375 | 335 | 12-φ18 | 24 × 3 | 375 | 335 | 12-φ18 | 24 × 3 | 395 | 350 | 12-φ22 | 26 × 3 |
300 | 12 | 178 | 300 | 480 | 440 | 395 | 12-φ22 | 24 × 4 | 440 | 395 | 12-φ22 | 24 × 4 | 445 | 400 | 12-φ22 | 26 × 4 |
350 | 14 | 190 | 330 | 545 | 490 | 445 | 12-φ22 | 24 × 4 | 490 | 445 | 12-φ22 | 24 × 4 | 505 | 460 | 16-φ22 | 26 × 4 |
400 | 16 | 216 | 360 | 550 | 540 | 495 | 16-φ22 | 24 × 4 | 540 | 495 | 16-φ22 | 24 × 4 | 565 | 515 | 16-φ26 | 26 × 4 |
450 | 18 | 222 | 380 | 620 | 595 | 550 | 16-φ22 | 24 × 4 | 595 | 550 | 16-φ22 | 24 × 4 | 615 | 565 | 20-φ26 | 28 × 4 |
500 | 20 | 229 | 410 | 680 | 645 | 600 | 20-φ22 | 26 × 4 | 645 | 600 | 20-φ22 | 26 × 4 | 670 | 620 | 20-φ26 | 28 × 4 |
600 | 24 | 267 | 460 | 750 | 755 | 705 | 20-φ26 | 26 × 5 | 755 | 705 | 20-φ26 | 26 × 5 | 780 | 725 | 20-φ30 | 30 × 4 |
700 | 28 | 292 | 530 | 820 | 860 | 810 | 24-φ26 | 26 × 5 | 860 | 810 | 24-φ26 | 26 × 5 | 895 | 840 | 24-φ30 | 30 × 5 |
800 | 32 | 318 | 610 | 910 | 975 | 920 | 24-φ30 | 26 × 5 | 975 | 920 | 24-φ30 | 26 × 5 | 1015 | 950 | 24-φ33 | 32 × 5 |
900 | 36 | 330 | 640 | 930 | 1075 | 1020 | 24-φ30 | 26 × 5 | 1075 | 1020 | 24-φ30 | 26 × 5 | 1115 | 1050 | 28-φ33 | 34 × 5 |
1000 | 40 | 410 | 720 | 980 | 1175 | 1120 | 28-φ30 | 26 × 5 | 1175 | 1120 | 28-φ30 | 26 × 5 | 1230 | 1160 | 28-φ36 | 34 × 5 |
1200 | 48 | 470 | 820 | 1220 | 1375 | 1320 | 32-φ30 | 26 × 5 | 1405 | 1340 | 32-φ33 | 28 × 5 | 1455 | 1380 | 32-φ39 | 38 × 5 |
1400 | 56 | 530 | 930 | 1310 | 1575 | 1520 | 36-φ30 | 26 × 5 | 1630 | 1560 | 36-φ36 | 32 × 5 | 1675 | 1590 | 36-φ42 | 42 × 5 |
1600 | 64 | 600 | 80 | 1460 | 1830 | 1760 | 40-φ36 | 1915 | 1820 | 40-φ48 | 62 × 5 | |||||
1800 | 72 | 670 | 1090 | 1560 | 2045 | 1970 | 44-φ39 | 2115 | 2020 | 44-φ48 | ||||||
2000 | 80 | 760 | 1190 | 1670 | 2265 | 2 1 80 | 48-φ42 | 2325 | 2230 | 48-φ48 |
D943H Electric High Temp Butterfly Valve Connection Size:
2.5Mpa pressure models are: D343H-25C, D343Y-25C, D341H-25C; 4.0Mpa pressure models are: D343H-40C, D343Y-40C, D341H-40C
The way to | Main dimensions | 1.6M Pa | 2.5MPa | 4.0MPa | ||||||||||||
mm | inc h | L | H | H 1 | D | D 1 | Z-φd | b × f | D | D 1 | Z-φd | b × f | D | D1 | Z-φd | b × f |
50 | 2 | 108 | 75 | 200 | 165 | 125 | 4-φ18 | 20 × 3 | 165 | 125 | 4-φ18 | 20 × 3 | 165 | 125 | 4-φ18 | 20 × 3 |
65 | 2-1 / 2 | 112 | 93 | 210 | 185 | 145 | 4-φ18 | 20 × 3 | 185 | 145 | 8-φ18 | 22 × 3 | 185 | 145 | 8-φ18 | 22 × 3 |
80 | 3 | 114 | 98 | 226 | 200 | 160 | 8-φ18 | 20 × 3 | 200 | 160 | 8-φ18 | 4 × 3 | 200 | 160 | 8-φ18 | 24 × 3 |
100 | 4 | 127 | 130 | 250 | 220 | 180 | 8-φ18 | 22 × 3 | 235 | 190 | 8-φ22 | 24 × 3 | 235 | 190 | 8-φ22 | 24 × 3 |
125 | 5 | 140 | 165 | 295 | 250 | 210 | 8-φ18 | 22 × 3 | 270 | 220 | 8-φ26 | 26 × 3 | 270 | 220 | 8-φ26 | 26 × 3 |
150 | 6 | 140 | 175 | 315 | 285 | 240 | 8-φ22 | 24 × 3 | 300 | 250 | 8-φ26 | 28 × 3 | 300 | 250 | 8-φ26 | 28 × 3 |
200 | 8 | 152 | 220 | 380 | 340 | 295 | 12-φ22 | 24 × 3 | 360 | 310 | 12-φ26 | 30 × 3 | 375 | 320 | 12-φ30 | 34 × 3 |
250 | 10 | 165 | 250 | 405 | 405 | 355 | 12-φ26 | 26 × 3 | 425 | 370 | 12-φ30 | 32 × 3 | 450 | 385 | 12-φ33 | 38 × 3 |
300 | 12 | 178 | 300 | 480 | 460 | 410 | 12-φ26 | 28 × 3 | 485 | 430 | 16-φ30 | 34 × 4 | 515 | 450 | 12-φ33 | 42 × 4 |
350 | 14 | 190 | 330 | 545 | 520 | 470 | 16-φ26 | 30 × 4 | 555 | 490 | 16-φ33 | 38 × 4 | 580 | 510 | 16-φ36 | 46 × 4 |
400 | 16 | 216 | 360 | 550 | 580 | 525 | 16-φ30 | 32 × 4 | 620 | 550 | 16-φ36 | 40 × 4 | 660 | 585 | 16-φ39 | 50 × 4 |
450 | 18 | 222 | 380 | 620 | 640 | 585 | 20-φ30 | 34 × 4 | 670 | 600, | 20-φ36 | 42 × 4 | 685 | 610 | 20-φ39 | 50 × 4 |
500 | 20 | 229 | 410 | 680 | 715 | 650 | 20-φ33 | 36 × 4 | 730 | 660 | 20-φ36 | 44 × 4 | 755 | 670 | 20-φ42 | 52 × 4 |
600 | 24 | 267 | 460 | 750 | 840 | 770 | 20-φ36 | 38 × 5 | 845 | 770 | 20-φ39 | 46 × 5 | 890 | 795 | 20-φ48 | 60 × 5 |
700 | 28 | 292 | 530 | 820 | 910 | 840 | 24-φ36 | 38 × 5 | 960 | 875 | 24-φ42 | 46 × 5 | ||||
800 | 32 | 318 | 610 | 910 | 1025 | 950 | 24-φ39 | 38 × 5 | 1085 | 990 | 24-φ48 | 50 × 5 | ||||
900 | 36 | 330 | 640 | 930 | 1125 | 1050 | 28-φ39 | 40 × 5 | 1185 | 1 090 | 28-φ48 | 54 × 5 | ||||
1000 | 40 | 410 | 720 | 980 | 1255 | 1170 | 28-φ42 | 42 × 5 | 1320 | 1210 | 28-φ56 | 58 × 5 | ||||
1200 | 48 | 470 | 820 | 1220 | 1485 | 1390 | 32-φ48 | 48 × 5 | 1530 | 1420 | 32-φ56 | 72 × 5 | ||||
1400 | 56 | 530 | 930 | 1310 | 1685 | 1590 | 36-φ48 | 60 × 5 | 1750 | 1640 | 36-φ65 | 78 × 5 | ||||
1600 | 64 | 600 | 980 | 1460 | 1930 | 1820 | 40-φ56 | |||||||||
1800 | 72 | 670 | 1090 | 1560 | 2130 | 2020 | 44-φ56 | |||||||||
2000 | 80 | 760 | 1190 | 1670 | 2345 | 2230 | 48-φ62 |
Reminder:
All text, data and pictures in this article are for reference only.To see more details of the D943H Electric High Temp Butterfly Valve performance parameters, structural dimension parameters, pricing, etc., or to request high quality printing samples, please Contact us.
