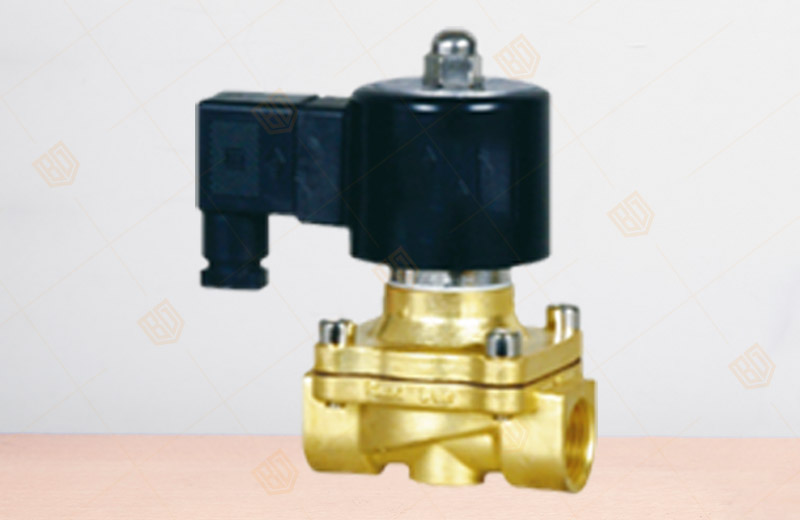

ZCM Direct Acting Gas Solenoid Valve

Product overview

Product model: ZCM
Nominal diameter: DN2.5~100mm
Working pressure: PN1.0~ 50.0MPa
Operating temperature: -196℃-650℃
Connection mode: internal thread, external thread, flange, welding, butt welding, socket welding, sleeve, clamp
Applicable medium: gas, methane, gas, natural, normal temperature liquid, gas
Body material: brass, cast steel, cast iron

ZCM Direct Acting Gas Solenoid Valve product details

ZCM Direct Acting Gas Solenoid Valve main dimensions

model Connection size The way to CV value Long (L) High (H) Medium temperature Working pressure (pressure difference) Rated voltage Body material
ZCM-5 G1 / 8 2.5 0.23 41 75 -5 ~ 60 ℃ 0 ~ 4kgf / cm2 220VAC / 50HZ
110VAC / 50HZ
DC24V
DC12V
Other voltages can be customized 		Brass body Brass
steel flanged
cast iron
ZCM-8 G1 / 4 2.5 0.23 41 75
ZCM-10 G3 / 8 4 0.48 53 90
ZCM-10 G3 / 8 15 0.6 69 117
ZCM-15 G1 / 2 " 15 3.73 69 117
ZCM-20 G3 / 4 " 20 7 73 124
ZCM-25 G1 " 25 11.1 99 135
ZCM-32 G1¼ " 32 14 115 154
ZCM-40 G1½ " 40 24.5 120 162
ZCM-50 G2 " 50 35 154 185
ZCM-40F Flange 4-Φ18 Pitch Φ110 40 24.5 175 220
ZCM-50F Flange 4-Φ18 Pitch Φ125 50 35 220 240
ZCM-65F Flange 4-Φ18 Pitch Φ145 65 52.5 256 330
ZCM-80F Flange 4-Φ18 Pitch Φ1160 80 81.7 280 330
ZCM-100F Flange 4-Φ18 Pitch Φ180 100 128.4 355 390


Reminder:

All text, data and pictures in this article are for reference only.To see more details of the ZCM Direct Acting Gas Solenoid Valve performance parameters, structural dimension parameters, pricing, etc., or to request high quality printing samples, please Contact us.
