VQ947H Electric V-type Ball Valve
Product overview
Model: VQ947H
Nominal diameter: DN25 ~ 300mm
Nominal pressure: PN1.6 ~ 4.0MPa
Main material: WCB, 304,316
Connection: Wafer, flange
Flange Standard: GB, ANSI, DIN, JIS
Electric actuator: switching, regulation, explosion proof
Design and manufacture: GB / T12237 / 1989, ASME B16.34, API608
Length of the structure: GB / T12221, ASME B16.10
Connection dimensions: GB 9113.1, ASME B16.5
Test standard: GB / T13927-1992, API 598, API6D
VQ947H Electric V-type Ball Valve - Product Description
VQ947H Electric V-type Ball Valve produced and sold by Baigang valve group with a cylindrical spring preloaded compensated movable metal seat structure, sealing performance and reliable. Core and valve seat will not produce jamming or detachment, long service life. The V-shaped cutout on the core has a shear effect with the metal seat, especially suitable for controlling medium with high viscosity, fiber, solid particles and slurry. Paper pulp industry structure is particularly superior. Valve flow capacity, pressure loss is small, and the medium will not be deposited in the valve body cavity, the valve not only has a similar ratio of flow characteristics, adjustable range, the maximum adjustable ratio of 100: 1, but also with accurate Adjustment and reliable positioning of the function.
VQ947H Electric V-type Ball Valve - main parts material
Part Name |
Material |
|
Body, bonnet |
WCB |
CF 8 |
Sealing ring |
2Cr13 + Nitriding |
304 + nitriding |
Sphere |
2Cr13 + hard grid |
304 + hard grid |
Seat, stem |
2Cr13 |
304 |
Gasket |
Flexible graphite + stainless steel |
Flexible graphite + stainless steel |
Studs |
35CrMoA |
1Cr18Ni9Ti |
VQ947H Electric V-type Ball Valve - main performance specifications
Nominal pressure |
Test pressure (MPa) |
Suitable media |
proper temperature |
|
Shell test |
Seal test |
|||
1.6 |
2.4 |
1.76 |
Water, oil, gas and high viscosity, |
-28 ℃ ~ ≤550 ℃ |
2.5 |
3.75 |
2.75 |
||
4.0 |
6.0 |
4.4 |

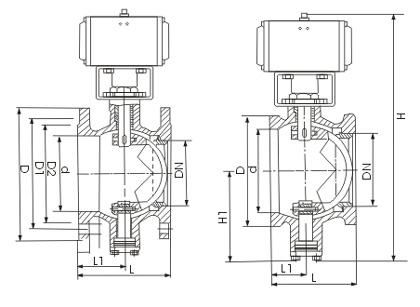

VQ947H Electric V-type Ball Valve - main dimensions
PN |
Nominal diameter |
Size (mm) |
||||||||
(Mm) |
(In) |
W |
L |
W1 |
L1 |
d |
d1 |
H1 |
H |
|
PN1.6MPa |
25 |
- |
50 |
- |
25 |
- |
64 |
38 |
57 |
200 |
40 |
- |
60 |
- |
25 |
- |
82 |
49 |
63 |
205 |
|
50 |
- |
75 |
124 |
32 |
62 |
100 |
60 |
92 |
225 |
|
65 |
- |
80 |
145 |
38 |
72.5 |
120 |
75 |
100 |
235 |
|
80 |
- |
100 |
165 |
45 |
82.5 |
131 |
89 |
108 |
260 |
|
100 |
- |
115 |
194 |
50 |
97 |
158 |
113 |
117 |
270 |
|
125 |
- |
135 |
210 |
55 |
105 |
180 |
140 |
140 |
320 |
|
150 |
- |
160 |
229 |
65 |
114.5 |
216 |
164 |
177 |
340 |
|
200 |
- |
200 |
243 |
80 |
121.5 |
268 |
205 |
200 |
390 |
|
250 |
- |
240 |
297 |
90 |
148.5 |
326 |
259 |
252 |
420 |
|
300 |
- |
- |
338 |
- |
169 |
- |
300 |
270 |
510 |
|
PN2.5MPa |
25 |
- |
50 |
- |
25 |
- |
64 |
38 |
57 |
200 |
40 |
- |
60 |
- |
25 |
- |
82 |
49 |
63 |
205 |
|
50 |
- |
75 |
124 |
32 |
62 |
100 |
60 |
92 |
225 |
|
65 |
- |
85 |
145 |
38 |
72.5 |
120 |
75 |
100 |
235 |
|
80 |
- |
100 |
165 |
45 |
82.5 |
131 |
89 |
108 |
260 |
|
100 |
- |
115 |
194 |
50 |
97 |
158 |
113 |
117 |
270 |
|
125 |
- |
135 |
210 |
55 |
105 |
180 |
140 |
140 |
320 |
|
150 |
- |
160 |
229 |
65 |
114.5 |
216 |
164 |
177 |
340 |
|
200 |
- |
200 |
243 |
80 |
121.5 |
268 |
205 |
200 |
390 |
|
250 |
- |
240 |
297 |
92 |
148.5 |
326 |
259 |
252 |
420 |
|
300 |
- |
- |
338 |
- |
169 |
- |
300 |
270 |
510 |
|
ClASS150 |
25 |
- |
50 |
- |
25 |
- |
64 |
38 |
57 |
200 |
40 |
11/2 |
65 |
- |
25 |
- |
82 |
49 |
63 |
205 |
|
50 |
2 |
75 |
124 |
32 |
62 |
100 |
60 |
92 |
225 |
|
65 |
21/2 |
85 |
145 |
38 |
72.5 |
120 |
75 |
100 |
235 |
|
80 |
3 |
100 |
165 |
45 |
82.5 |
131 |
89 |
108 |
260 |
|
100 |
4 |
115 |
194 |
50 |
97 |
158 |
113 |
117 |
270 |
|
125 |
5 |
135 |
210 |
55 |
105 |
180 |
140 |
140 |
320 |
|
150 |
6 |
160 |
229 |
65 |
114.5 |
216 |
164 |
177 |
340 |
|
200 |
8 |
200 |
243 |
80 |
121.5 |
268 |
205 |
200 |
390 |
|
250 |
10 |
240 |
297 |
92 |
148.5 |
326 |
259 |
252 |
420 |
|
300 |
12 |
- |
338 |
- |
169 |
- |
