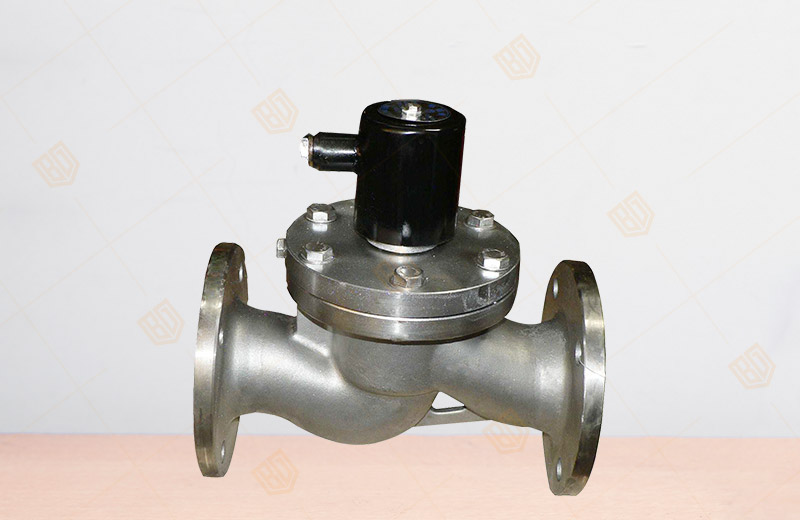

ZBSF Stainless Steel Steam Solenoid Valve
Product overview
Product model: ZBSF
Nominal diameter: DN10~150mm
Nominal pressure: PN1.6MPa
Working medium: corrosive fluid, ultra-clean fluid, edible fluid
Medium temperature: ZBSF-1 (1Y) : ≤60℃;ZBSF-2 (2) : ≤280℃
Ambient temperature: -40 ~ +60℃
ZBSF Stainless Steel Steam Solenoid Valve main dimensions
DN |
L |
H |
D |
D1 |
D2 |
b |
f |
n-d |
10 |
115 |
148 |
Φ90 |
Φ60 |
Φ41 |
14 |
2 |
4-Φ14 |
15 |
115 |
148 |
Φ95 |
Φ65 |
Φ46 |
14 |
2 |
4-Φ14 |
20 |
115 |
148 |
Φ105 |
Φ75 |
Φ56 |
16 |
2 |
4-Φ14 |
25 |
125 |
148 |
Φ115 |
Φ85 |
Φ65 |
16 |
3 |
4-Φ14 |
32 |
150 |
182 |
Φ140 |
Φ100 |
Φ76 |
18 |
3 |
4-Φ18 |
40 |
165 |
182 |
Φ150 |
Φ110 |
Φ84 |
18 |
3 |
4-Φ18 |
50 |
190 |
192 |
Φ160 |
Φ125 |
Φ99 |
20 |
3 |
4-Φ18 |
65 |
290 |
265 |
Φ185 |
Φ145 |
Φ118 |
20 |
3 |
8-Φ18 |
80 |
310 |
276 |
Φ200 |
Φ160 |
Φ132 |
20 |
3 |
8-Φ18 |
100 |
350 |
373 |
Φ220 |
Φ185 |
Φ156 |
22 |
3 |
8-Φ18 |
125 |
400 |
416 |
Φ250 |
Φ210 |
Φ184 |
22 |
3 |
8-Φ18 |
150 |
480 |
440 |
Φ285 |
Φ240 |
Φ211 |
24 |
3 |
8-Φ22 |
