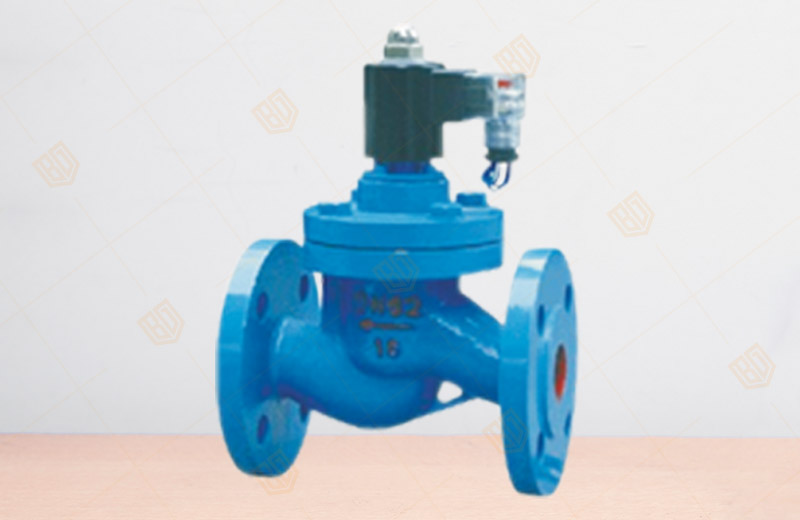

ZCA Vacuum Solenoid Valve
Product overview
Product model: ZCA
Nominal diameter: DN15~50mm
Working pressure: 1.0MPa
Working pressure difference: -0.1 ~ 0MPa
Medium temperature: ≤60 ℃
Working medium: air and other non-corrosive gases
Power supply voltage: AC220V DC24V Other specifications can be made for special order
ZCA Vacuum Solenoid Valve overview
ZCA Vacuum Solenoid Valve main dimensions is suitable for vacuum equipment pipeline to do two on-off switching actuator. It is widely used in food, metallurgy and other industries vacuum system piping.
ZCA Vacuum Solenoid Valve technical parameters
Working medium |
Air and other non-corrosive gases |
|||||
Medium temperature ℃ |
≤60 |
|||||
Working pressure MPa |
1.0 |
|||||
Working pressure difference MPa |
-0.1 ~ 0 |
|||||
voltage |
AC220V DC24V Other specifications can be special order |
|||||
Service life |
JB / T7352-94 regulations |
|||||
Rated flow coefficient KV |
3.8 |
7.4 |
10.3 |
18.8 |
25.7 |
41 |
Leakage ml / min |
According to JB / T7352-94.F regulations |
|||||
Nominal diameter mm |
15 |
20 |
25 |
32 |
40 |
50 |
Power consumption (VA) |
50 |
90 |
ZCA Vacuum Solenoid Valve installation size
Nominal diameter DN |
Female thread connection |
Flange connection |
|||||||||
internal thread |
Dimensions |
Dimensions |
Flange size |
||||||||
G |
H |
L |
H |
L |
D |
D1 |
D2 |
nd |
b |
f |
|
15 |
1/2 " |
148 |
92 |
176 |
130 |
95 |
65 |
46 |
4-φ14 |
14 |
2 |
20 |
3/4 " |
148 |
92 |
181 |
150 |
105 |
75 |
56 |
4-φ14 |
16 |
2 |
25 |
1" |
148 |
110 |
210 |
160 |
115 |
85 |
65 |
4-φ14 |
16 |
3 |
32 |
11/4 " |
182 |
120 |
221 |
180 |
140 |
100 |
76 |
4-φ18 |
18 |
3 |
40 |
11/2 " |
182 |
140 |
230 |
200 |
150 |
110 |
84 |
4-φ18 |
18 |
3 |
50 |
2" |
192 |
162 |
252 |
230 |
165 |
125 |
99 |
4-φ18 |
20 |
3 |
