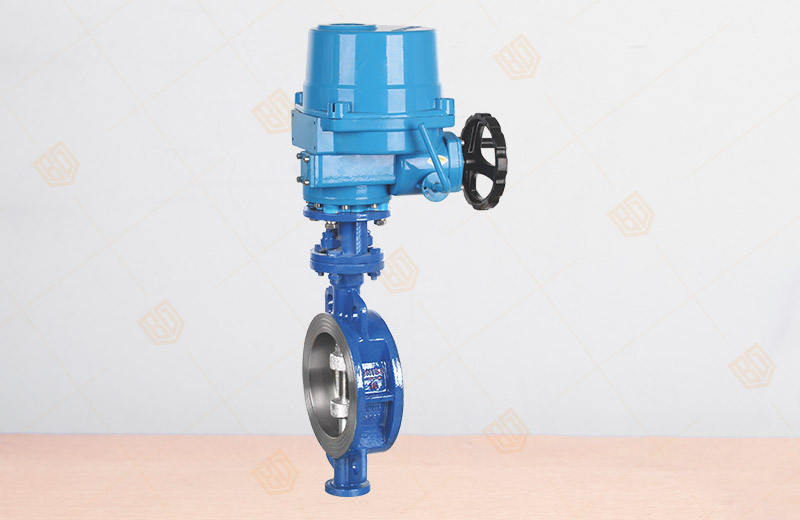

D973H/Y Electric wafer flange hard seal butterfly valve

Product overview

Product model: D973H/Y
Nominal diameter: DN50~2000mm
Nominal pressure: PN16~64MPa
Body material: WCB, 304, 316
Connection mode: clamp type, flange type
Design standard: GB/T12238-1989
Flange connection size: GB/T9113.1-2000;GB/T9113.2-2000 GB/T9115.1-2000.GB/T9115.2-2000
Structure length: GB/T12221-1989
Pressure test: GB/T13927-1992;JB/T9092-1999

D973H/Y Electric wafer flange hard seal butterfly valve product details

D973H/Y Electric wafer flange hard seal butterfly valve product description

D973H/Y Electric wafer flange hard seal butterfly valve produced and sold by Baigang valve group with a "U" stainless steel seal, the precision of the elastic ring and polished disc three-dimensional eccentric contact. It solves the defect that the traditional eccentric butterfly valve is still in sliding contact friction at the moment when the opening and closing is 0 ° ~ 10 °, so that the sealing surface of the butterfly plate can be separated at the moment of opening and the effect of closing the contact is sealed, thus prolonging the service life and sealing performance Good purpose. Therefore, it is widely applied to the pipeline of metallurgy, electric power, petroleum, chemical industry, air, gas, combustible gas and water supply and drainage corrosive media with medium temperature ≤550 ℃. It is the best device to regulate the flow and cut off the fluid.


D973H/Y Electric wafer flange hard seal butterfly valve product features

1, the butterfly valve structure is simple, compact, light weight, easy to install and disassemble, easy maintenance;
2, the butterfly valve with stainless steel "U" ring, with a certain flexibility in both high temperature and low temperature, All have excellent sealing;
3, the three-dimensional eccentricity of the butterfly valve, after rigorous calculations, "U" type ring and disc almost no friction, long service life
4, The sealing surface of the plate is cladded with cobalt-based cemented carbide, and the sealing surface is resistant to abrasion and long service life.
5, The butterfly valve has a unique structure and the "switch" can be completed by only rotating the valve stem by 90 °. Operation flexibility, convenience, effort, not affected by the level of media pressure, sealing performance and reliable;
6, high temperature, low temperature, corrosion resistance.


D973H/Y Electric wafer flange hard seal butterfly valve main shape and connection dimensions

DN L 0.25MPa 0.6MPa H H1 1.0MPa H H1
D1 D2 Z-φd D1 D2 Z-φd D1 D2 Z-φd
50 43 110 90 4-φ14 110 90 4-φ14 70 290 125 100 4-φ18 90 310
65 46 130 110 4-φ14 130 110 4-φ14 80 300 145 120 4-φ18 100 320
80 49 150 125 4-φ18 150 125 4-φ18 110 320 160 135 4-φ18 120 330
100 56 170 145 4-φ18 170 145 4-φ18 130 335 180 155 8-φ18 140 345
125 64 200 175 8-φ18 200 175 8-φ18 145 395 210 185 8-φ18 155 405
150 70 225 200 8-φ18 225 200 8-φ18 160 400 240 210 8-φ23 180 420
200 71 280 155 8-φ18 280 155 8-φ18 185 495 295 265 8-φ23 205 515
250 76 335 310 12-φ18 335 310 12-φ18 220 570 350 320 12-φ23 240 590

300

83 395 362 12-φ23 395 362 12-φ23 300 650 400 368 12-φ23 305 655
350 92 445 412 12-φ23 445 412 12-φ23 310 685 460 428 16-φ23 325 700
400 102 495 462 16-φ23 495 462 16-φ23 330 690 515 482 16-φ26 360 720
450 114 550 518 16-φ23 550 518 16-φ23 360 740 565 532 20-φ25 385 765
500 127 600 568 20-φ23 600 568 20-φ23 380 820 620 585 20-φ25 410 850
600 154 705 670 20-φ25 705 670 20-φ25 425 885 725 685 20-φ30 450 910
700 165 810 775 24-φ25 810 775 24-φ25 470 990 840 800 24-φ30 505 1025
800 190 920 880 24-φ30 920 880 24-φ30 530 1055 950 905 24-φ34 565 1090
900 203 1020 980 24-φ30 1020 980 24-φ30 585 1165 1050 1005 28-φ34 620 1200
1000 216 1120 1080 28-φ30 1120 1080 28-φ30 648 1235 1160 1115 28-φ34 693 1280
1200 254 1320 1280 32-φ30 1340 1295 32-φ34 730 1335 1380 1325 32-φ41 780 1385
1400 297 1520 1480 36-φ30 1560 1510 36-φ34 807 1405 1590 1525 36-φ48 862 1460
1600 318 1730 1690 40-φ30 1760 1710 40-φ34 903 1475 1820 1750 40-φ54 998 1570
1800 356 1930 1890 44-φ30 1970 1910 44-φ41 1080 1820 2020 1950 44-φ54 1150 1890
2000 406 2130 2090 48-φ48 2180 2110 48-φ48 1280 2190 2230 2160 48-φ54 1340 2250


Reminder:

All text, data and pictures in this article are for reference only.To see more details of the D973H/Y Electric wafer flange hard seal butterfly valve performance parameters, structural dimension parameters, pricing, etc., or to request high quality printing samples, please Contact us.
