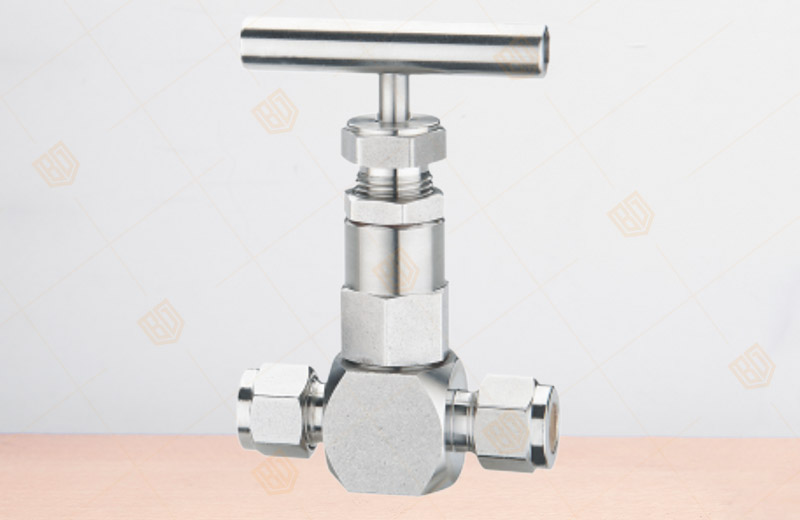

JS-91 Needle Valve
Product overview
Product name: JS-91
Nominal diameter: NPS1/2"
Nominal pressure: PN1.6MPa
Drive mode: manual
Connection type: screw thread
Commonly used material: stainless steel, carbon steel, etc
Working pressure difference: 0.04~1.6MPa
Working medium: steam, oil (high temperature gas, liquid)
Medium temperature: -40~350℃
JS-91 needle valve Overview
JS-91 Needle Valve produced and sold by Baigang valve group instrumentation measurement system is an important part of pipe systems, there are globe valves and ball valves, its function is to open or cut off the pipeline access. Needle valves have the advantages of easy installation and removal, connection and fastening, is conducive to fire prevention, explosion and pressure resistance, good sealing performance, etc., is a advanced connection valve in power plant, oil refining, chemical plant and instrumentation measurement pipeline . Needle valve sealing is good, long life, even after the sealing surface is damaged, only need to replace the vulnerable parts, you can continue to use. The needle valve should be installed so that the flow direction of the medium matches the direction of the arrow on the valve body. Manual shut-off valve, ball valve can be installed in any position on the pipeline. Needle valve is a valve that can be precisely adjusted for a wide range of uses, such as flame cutting with a pitch, the knob to adjust the flame temperature is a needle valve, gauge needle valve instrumentation piping system is an important part of the system, there are Globe valve and ball valve, its function is to open or cut off the pipeline access. Depending on the spool, it can be divided into globe valve, gate valve, plug valve, ball valve, disc valve, needle valve, etc. • The spool of the needle valve is A very sharp cone, like a needle inserted into the seat, hence the name, JS-91 needle valve than other types of valves to withstand greater pressure, good sealing performance, it is generally used for smaller Flow, high-pressure gas or liquid medium seal needle type valve and pressure gauge with the most appropriate use of the general needle valve made of thread connections.
Product Name: JS-91 Needle Valve
Product Type: JS-91 Needle Valve
Actuator: Manual
Connection: Thread
Structure: Two Valve Group
Sealing Structure: Cone Sealing
Pressure Range: 20Mpa
Nominal Diameter: 1/2 "
Common materials: stainless steel, carbon steel and so on
Nominal pressure: 1.6MPa
Working pressure: 0.04 ~ 1.6MPa
Working medium: steam, oil (high temperature gas, liquid)
Medium temperature: -40 ~ 350 ℃
Ambient temperature: -40 ~ 60 ℃
Ambient temperature: 95 ± 3% ℃
Rated voltage: AC 220V
Power : (VA) 45
Insulation Class : H Class
Operating Frequency : Continuous
Rated Flow Coefficient (KV) : 5.4 9 15 18 28 40
Leakage (ml / min) : 1.5 3.0 30 45 60
Reminder:
All text, data and pictures in this article are for reference only.To see more details of the JS-91 Needle Valve performance parameters, structural dimension parameters, pricing, etc., or to request high quality printing samples, please Contact us.
