Your current location: ProductsOther ValvesBrass Flange Ball Valve

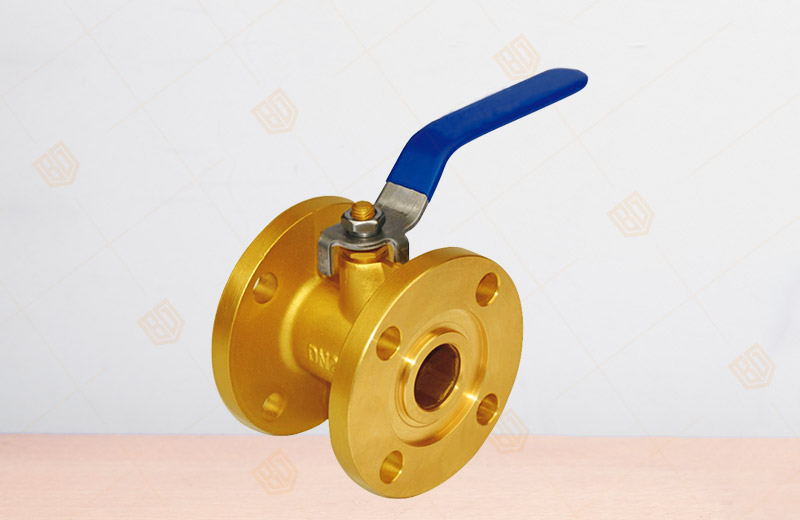

Q41F-16 Brass Flange Ball Valve

Product overview

Product model: Q41F-16
Nominal diameter: DN15~100mm
Nominal pressure: 1.6MPa
Working medium: water, non-corrosive liquid, liquid
Operating temperature: -20℃≤ T ≤120℃

Q41F-16 Brass Flange Ball Valve product details

Q41F-16 Brass Flange Ball Valve specifications and dimensions


DN(mm) NPS(in) L H D K D1 n-Φd
15 1/2 78 62 95 65 119 4-14
20 3/4 81 67 105 75 136 4-14
25 1 84 73 115 85 134 4-14
32 1 1/4 85.5 96 140 100 153 4-18
40 1 1/2 108 96 150 110 143 4-18
50 2 108 108 165 125 245 4-18
65 2 1/2 112.5 122 186 145 143 8-18
80 3 123.5 173 200 160 232 8-18
100 4 152 152 215 180 239 8-18


Reminder:

All text, data and pictures in this article are for reference only.To see more details of the Q41F-16 Brass Flange Ball Valve performance parameters, structural dimension parameters, pricing, etc., or to request high quality printing samples, please Contact us.
