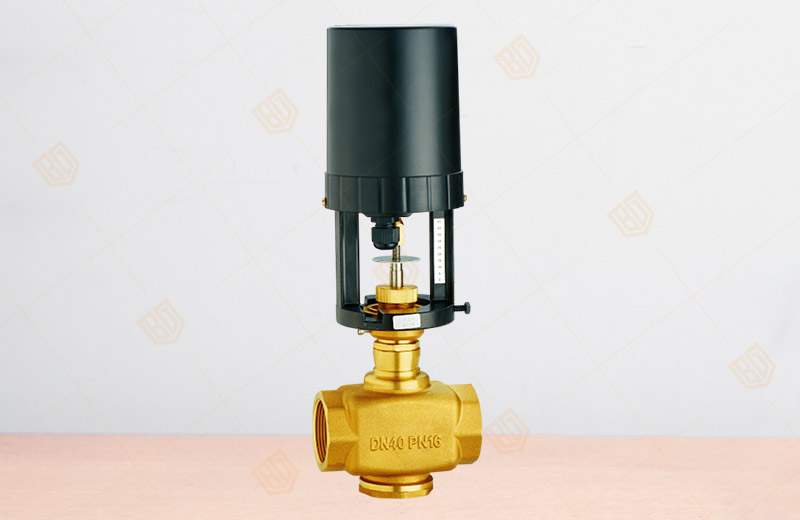

VB-3200 Electric Proportional Integral Regulating Valve
Product overview
Product model: VB-3200
Nominal diameter: DN25~50mm
Nominal pressure: 1.6MPa
Connection mode: BSP parallel internal thread type (BS21)
Medium temperature: 120℃
Medium: water/steam
VB-3200 Electric Proportional Integral Regulating Valve purposes
VB-3200 Electric Proportional Integral Regulating Valve produced and sold by Baigang valve group coupled with the drive control device, can regulate steam or heating, ventilation and air conditioning system flow, is widely used in warm air conditioning system.
Body: Brass or bronze for cast steel
Stem: Stainless steel 1Cr18Ni9
Stem seals: Dingqing rubber or Teflon
VB-3200 Electric Proportional Integral Regulating Valve model and size Electric proportional integral control valve
|
model |
Specification DN (mm) |
Flow coefficient (KV) |
Travel (mm) |
Closing the pressure difference (kpa) |
Main size (mm) |
|
|
L |
H |
|||||
|
VB-3200 |
DN25 |
10 |
19 |
1400 |
110 |
265 |
|
DN32 |
16 |
22 |
800 |
120 |
270 |
|
|
DN40 |
25 |
22 |
500 |
130 |
275 |
|
|
DN50 |
40 |
22 |
400 |
145 |
285 |
|
Reminder:
All text, data and pictures in this article are for reference only.To see more details of the VB-3200 Electric Proportional Integral Regulating Valve performance parameters, structural dimension parameters, pricing, etc., or to request high quality printing samples, please Contact us.
