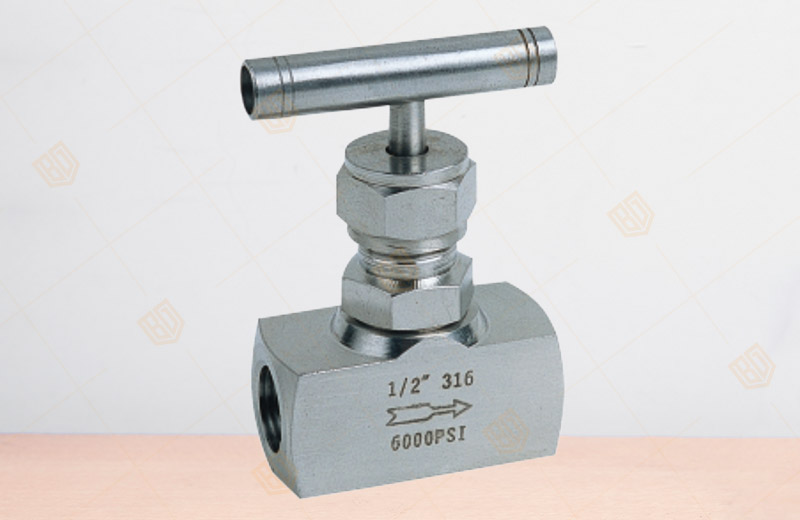

J13W Needle valve
Product overview
Product model: J13W-2
Nominal diameter: DN6-25mm
Nominal pressure: ≤10000Psi
Applicable temperature: -29℃ ~ +538℃
Applicable medium: water, oil, gas and other corrosive and non-corrosive media
Manufacturing standard: ASME B16.34-2004
Connection type: internal thread connection
Structural features: conical seal
Valves inspection and testing: API 598-1996
J13W Needle Valve main part material
Serial number |
Part Name |
Material |
1 |
Body |
20 # A105 SS304 SS304L SS316 SS316L |
2 |
Cover gasket |
Copper, PTFE |
3 |
cap |
20 # A105 SS304 SS304L SS316 SS316L |
4 |
Pad filler |
PTFE flexible graphite |
5 |
filler |
PTFE flexible graphite |
6 |
Packing gland |
20 # A105 SS304 SS304L SS316 SS316L |
7 |
Valve stem |
20 # A105 SS304 SS304L SS316 SS316L |
8 |
handle |
20 # A105 SS304 SS304L SS316 SS316L |
9 |
Socket head cap screws |
20 # A105 SS304 SS304L SS316 SS316L |
J13W Needle Valve main dimensions
ITEM NO. |
Nominal diameter DN |
Td |
H |
L |
L1 |
N |
J13W-JH-d-1 |
DN6 |
NPT1 / 4 |
75 |
58 |
75 |
60 |
J13W-JH-d-2 |
G1 / 4 |
85 |
58 |
- |
60 |
|
J13W-JH-d-3 |
DN10 |
NPT3 / 8 |
75 |
58 |
78 |
60 |
J13W-JH-d-4 |
G3 / 8 |
87 |
58 |
- |
60 |
|
J13W-JH-d-5 |
DN15 |
NPT1 / 2 |
77 |
68 |
86 |
60 |
J13W-JH-d-6 |
G1 / 2 |
87 |
60 |
- |
60 |
|
J13W-JH-d-7 |
DN20 |
G3 / 4 |
100 |
70 |
- |
60 |
J13W-JH-d-8 |
DN25 |
Rc1 (Rp1) |
110 |
78 |
- |
60 |
J13W-JH-d-9 |
DN32 |
Reminder:
All text, data and pictures in this article are for reference only.To see more details of the J13W Needle valve performance parameters, structural dimension parameters, pricing, etc., or to request high quality printing samples, please Contact us.
