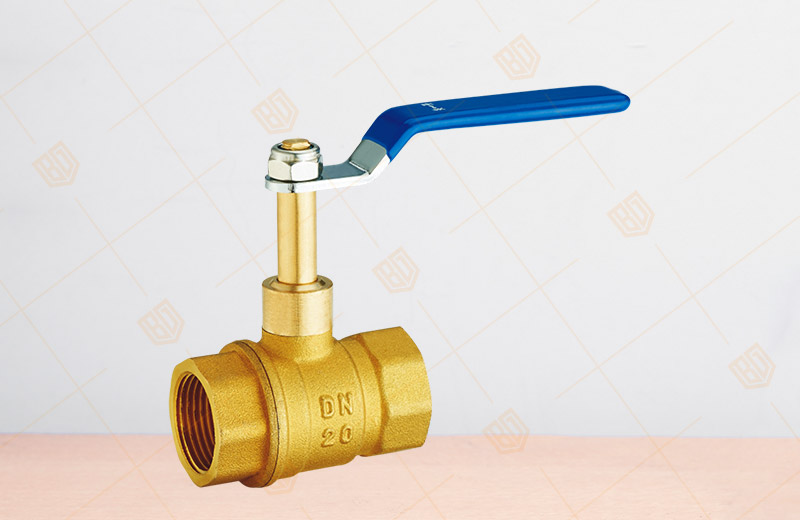

Q11F-20 Brass High Handle Air Conditioning Ball Valve

Product overview

Product model: Q11F-20
Nominal diameter: DN15~40mm
Nominal pressure: PN2.0MPa
Working medium: tap water
Operating temperature: 0℃≤ T ≤100℃

Q11F-20 Brass High Handle Air Conditioning Ball Valve product details

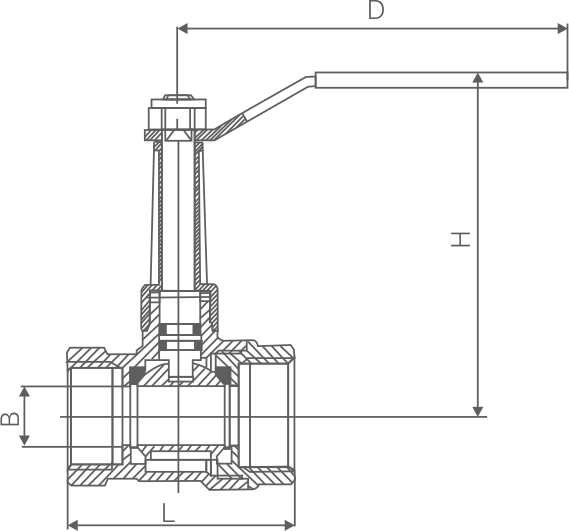

Q11F-20 Brass High Handle Air Conditioning Ball Valve specifications and dimensions


DN(mm) P L B D H
15 G1/2 52.8 12.5 95 83
20 G3/4 63 15 95 85
25 G1 72 20 111 90
32 G1 1/4 80 25 139 108
40 G1 1/2 90.6 32 139 111


Reminder:

All text, data and pictures in this article are for reference only.To see more details of the Q11F-20 Brass High Handle Air Conditioning Ball Valve performance parameters, structural dimension parameters, pricing, etc., or to request high quality printing samples, please Contact us.
