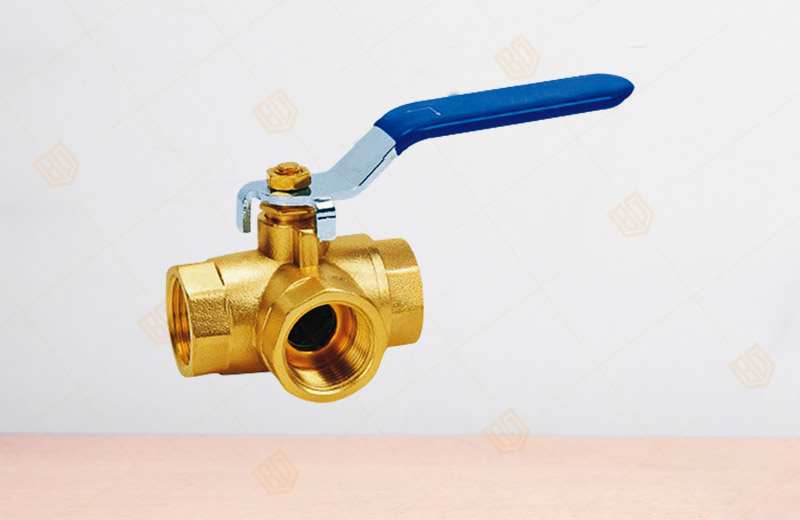

Q14F-16 Brass Tee Ball Valve (Model L)
Product overview
Product model: Q14F-16
Nominal diameter: DN15~25mm
Nominal pressure: 1.6MPa
Working medium: water, oil and gas
Operating temperature: -20℃≤ T ≤120℃
Pipe thread standard: in line with ISO228 standard
Q14F-16 Brass Tee Ball Valve (Model L) specifications and dimensions
DN(mm) | NPS(in) | L | H | D | S | ΦB |
15 | 1/2 | 59.5 | 47 | 89.5 | 26 | 12 |
20 | 3/4 | 69 | 47 | 112 | 32 | 15 |
25 | 1 | 79.5 | 56.5 | 117 | 38.5 | 19 |
Reminder:
All text, data and pictures in this article are for reference only.To see more details of the Q14F-16 Brass Tee Ball Valve (Model L) performance parameters, structural dimension parameters, pricing, etc., or to request high quality printing samples, please Contact us.
