Your current location: ProductsOther ValvesBrass Vertical Check Valve

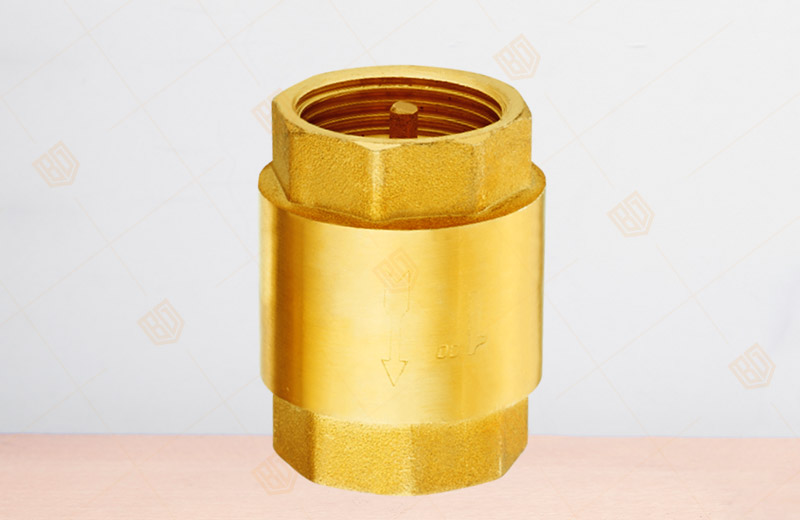

H12X-10 Brass Vertical Check Valve

Product overview

Product model: H12X-10
Nominal diameter: DN15~65mm
Nominal pressure: 1.6MPa
Working medium: water, oil
Operating temperature: -20℃≤ T ≤120℃
Pipe threads meet ISO 228 standards

H12X-10 Brass Vertical Check Valve product details

H12X-10 Brass Vertical Check Valve main dimensions

DN SIZE L S φD
15 1/2 48 25 35
20 3/4 50.5 31 40.5
25 1 58 36.5 44.8
32 1 1/4 59 46 58
40 1 1/2 65.5 52.5 66
50 2 70 66 74.5
65 2 1/2 108.5 82 97


Reminder:

All text, data and pictures in this article are for reference only.To see more details of the H12X-10 Brass Vertical Check Valve performance parameters, structural dimension parameters, pricing, etc., or to request high quality printing samples, please Contact us.
