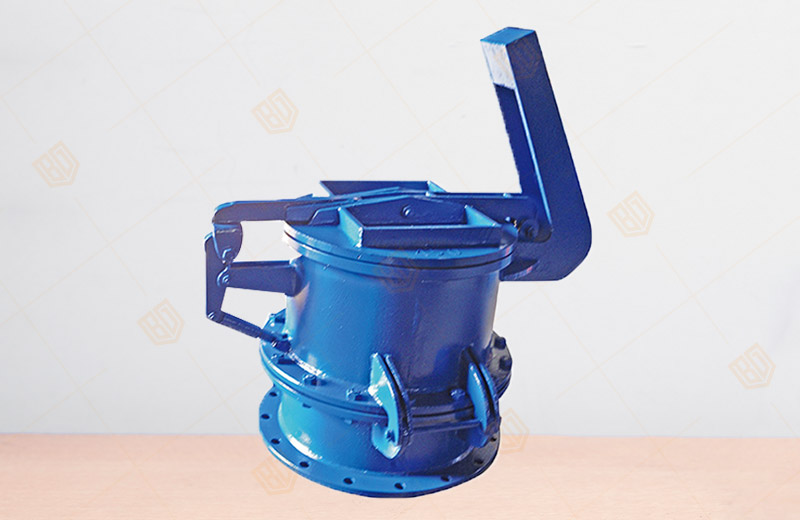

XB-42-II Bomb Pressure Relief Valve

Product overview

Product model: XB-42-II
Nominal diameter: DN300~1000mm
Nominal pressure: ≤0.1MPa
Medium temperature: 425 ℃
Main materials: carbon steel, aluminum alloy
Scope of application: natural gas, pipeline, petroleum
Flange standard: GB/T9115-98
Connection size: GB2555-81PN2.5
Test method: GB/T13927-92

XB-42-II Bomb Pressure Relief Valve product details

XB-42-II Bomb Pressure Relief Valve special structure and purpose :
XB-42-II Bomb Pressure Relief Valve produced and sold by Baigang valve group,This series of vent valve by the body, burst membrane, gripper, valve cover, hammer and other components. Burst membrane installed in the middle of the holder, with the valve body bolted. System overpressure, rupture of the rupture membrane, instant pressure relief, the valve cover pops up under gravity reset. The vent valve in the replacement of the rupture membrane when the valve body and the holder must be lifted vertically.
Bursting membrane owned by the user according to the process characteristics, mainly for building materials, metallurgy, petroleum, chemical and other administrative departments.


XB-42-II Bomb Pressure Relief Valve features

model

XB-61 XB-42

For blasting calculation pressure (must) MPa

0.1

Strength test pressure MPa

1.5

Operating temperature ℃

Compress explosive gas

Suitable media

Compress explosive gas


XB-42-II Bomb Pressure Relief Valve main parts material:

Part Name

Body

Connector

lever

cap

Sealing ring

Diaphragm

material

Carbon steel

Carbon steel

Carbon steel

Carbon steel

rubber

Aluminium Alloy


XB-42-II Bomb Pressure Relief Valve main shape and size of the connection table

DN

D

n-φd

D1

b

L

L1

H

Weight kg

300

440

12-φ22

395

16

880

250

250

52

350

490

12-φ22

445

16

907

250

275

69

400

540

16-φ22

495

16

1010

250

300

77

450

595

16-φ22

550

16

1060

252

325

83

500

645

20-φ22

600

20

1180

300

370

112

600

755

20-φ26

705

20

1280

300

420

152

700

860

24-φ26

810

20

1390

300

470

193

800

975

24-φ30

920

20

1480

300

520

165

900

1075

24-φ30

1020

20

1590

350

600

335

1000

1175

28-φ30

1120

20

1680

350

650

375



Reminder:

All text, data and pictures in this article are for reference only.To see more details of the XB-42-II Bomb Pressure Relief Valve performance parameters, structural dimension parameters, pricing, etc., or to request high quality printing samples, please Contact us.
