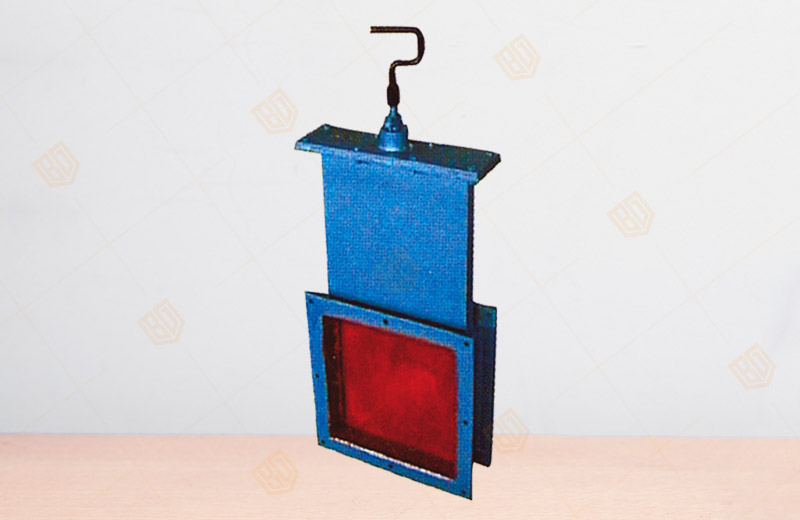

LC-I(II) Regulating Gate Valve
Product overview
Product model: LC-I(II)
Nominal diameter: 80~800 80x80~800x800
Applicable temperature: ≤300℃
Drive mode: manual, pneumatic, electric
Applicable medium: Type I valve is solid powder material, crystal material, etc
LC-I(II) Regulating Gate Valve main dimensions :
|
DN |
D |
D1 |
b |
H |
L |
KG |
DN |
D |
D1 |
b |
H |
L |
KG |
|
80 |
150 |
120 |
6 |
240 |
80 |
36 |
240 |
310 |
280 |
8 |
465 |
120 |
291 |
|
90 |
160 |
130 |
255 |
60 |
250 |
320 |
290 |
480 |
310 |
||||
|
100 |
170 |
140 |
270 |
98 |
260 |
330 |
300 |
495 |
340 |
||||
|
110 |
180 |
150 |
285 |
110 |
280 |
350 |
320 |
510 |
360 |
||||
|
120 |
190 |
160 |
300 |
100 |
127 |
300 |
380 |
345 |
525 |
140 |
380 |
||
|
130 |
200 |
170 |
315 |
140 |
320 |
400 |
365 |
540 |
400 |
||||
|
140 |
210 |
180 |
330 |
150 |
340 |
420 |
385 |
555 |
420 |
||||
|
150 |
220 |
190 |
345 |
167 |
360 |
440 |
405 |
1040 |
450 |
||||
|
160 |
230 |
200 |
8 |
360 |
175 |
380 |
460 |
425 |
10 |
1070 |
490 |
||
|
170 |
240 |
210 |
375 |
195 |
400 |
480 |
445 |
1110 |
550 |
||||
|
180 |
250 |
220 |
380 |
210 |
420 |
500 |
465 |
1140 |
160 |
590 |
|||
|
190 |
260 |
230 |
405 |
225 |
450 |
530 |
495 |
1210 |
630 |
||||
|
200 |
270 |
240 |
420 |
120 |
236 |
480 |
560 |
525 |
1270 |
660 |
|||
|
210 |
280 |
250 |
435 |
248 |
500 |
580 |
545 |
1310 |
690 |
||||
|
220 |
290 |
260 |
450 |
262 |
530 |
610 |
575 |
1370 |
720 |
||||
|
230 |
300 |
270 |
460 |
280 |
560 |
640 |
605 |
1400 |
750 |
Reminder:
All text, data and pictures in this article are for reference only.To see more details of the LC-I(II) Regulating Gate Valve performance parameters, structural dimension parameters, pricing, etc., or to request high quality printing samples, please Contact us.
