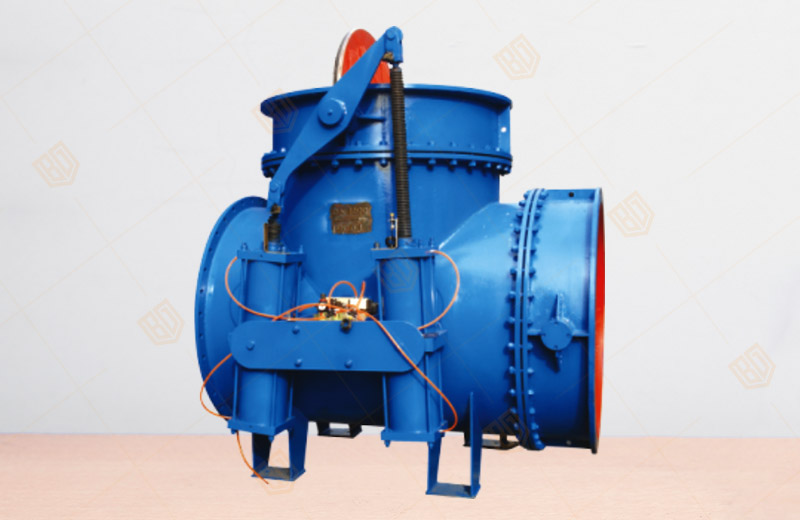

SQD643X Pneumatic three-way switch valve

Product overview

Product model: SQD643X
Nominal diameter: DN500~2400mm
Applicable temperature: ≤80℃-500℃
Drive mode: pneumatic, hydraulic
Applicable medium: dust gas, gas, air

SQD643X Pneumatic three-way switch valve product details

SQD643X Pneumatic three-way switch valve structural features and uses

SQD643X Pneumatic three-way switch valve produced and sold by Baigang valve group is a kind of ideal equipment for gas switching. It is developed by our factory which absorbs the advanced technology of similar products at home and abroad. The valve has the advantages of simple structure, convenient operation, reliable sealing, accurate switching and long service life. It is widely used in metallurgy , Petrochemical, environmental protection and other industries on-site operation or long-distance control. It is especially suitable for the recovery and dissipation of controlled gas in the converter gas recovery unit of steel plant. The valve is mainly composed of three bodies and two sealed butterfly valve and two gas (oil) cylinder, connecting rod, control box.


SQD643X Pneumatic three-way switch valve main performance


Nominal pressure 0.1MPa proper temperature SQD6 / 7 43X Butterfly valve rubber seal ≤ 80 ° C ≤ 120 ° C
Seal test pressure 0.11MPa SQD6 / 7 43H Butterfly valve metal seal ≤ 350 ° C ≤ 500 ° C
Strength test pressure 0.15MPa Air pressure (Pneumatic three-way switch valve) 0.4 ~ 0.6MPa
Opening and closing switching time ≤15s Supply pressure (Hydraulic three-way switch valve) 6.3MPa
Suitable media Dust gas, flue gas, gas, air and so on




Reminder:

All text, data and pictures in this article are for reference only.To see more details of the SQD643X Pneumatic three-way switch valve performance parameters, structural dimension parameters, pricing, etc., or to request high quality printing samples, please Contact us.
