H42N Vertical LPG Check Valve
Product overview
Product model: H42N
Nominal diameter: DN50~300mm
Nominal pressure: PN2.5MPa
Main material: carbon steel WCB
Nominal pressure PN | Strength test pressure Mpa | Air seal test pressure Mpa | Low pressure seal test (Mpa) | Suitable media | |||
2.5 | 3.75 | 2.75 | (-40 ~ + 80) |
H42N Vertical LPG Check Valve main parts material:
Part Name | material |
Body valve cover | Carbon steel WCB |
Disc | 25 # Nylon 1010 sealing surface |
Flange bolts | 35CrMoA |
Flange nut | 35 # |

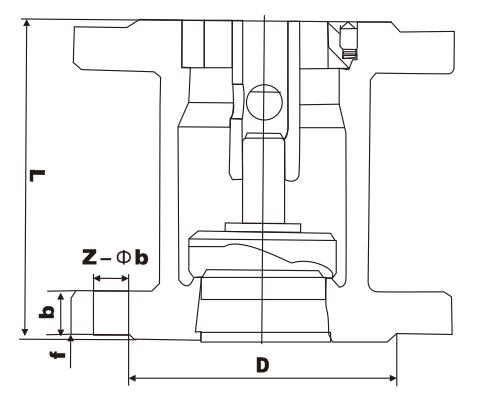

H42N Vertical LPG Check Valve main dimensions and connection dimensions
DN | L | D | D1 | D2 | b | f | zd |
50 | 140 | 160 | 125 | 100 | 20 | 3 | 4- * 18 |
65 | 160 | 180 | 145 | 120 | 22 | 3 | 8- * 18 |
80 | 185 | 195 | 160 | 135 | 22 | 3 | 8- * 18 |
100 | 210 | 135 | 190 | 160 | 24 | 3 | 8- * 23 |
125 | 250 | 270 | 220 | 188 | 28 | 3 | 8- * 25 |
150 | 300 | 300 | 250 | 218 | 30 | 3 | 8- * 25 |
200 | 380 | 375 | 310 | 278 | 34 | 3 | 12- * 25 |
Reminder:
All text, data and pictures in this article are for reference only.To see more details of the H42N Vertical LPG Check Valve performance parameters, structural dimension parameters, pricing, etc., or to request high quality printing samples, please Contact us.
