H76H/W Clamp Connection Double Disc Swing Check Valve
Product overview
Product model: H76H/W
Nominal diameter: NPS 2" ~ 60", DN50 ~ 1500mm
Pressure range: Class150 ~ 600LB, PN10 ~ 100Mpa
Operating temperature: -29℃ ~ +425℃
Main material: carbon steel, stainless steel, alloy steel
Design standard: API6D, JB/T8937, API594
Structure length: API594, JB/T8937
Connection standard: ASME B16.5, GB/T 9113, JB/T 79, HG/T 20592
Pressure test: API 598, GB/T 13927, JB/T 9092
Pressure-temperature rating: ASME B16.34, GB/T12224
H76H/W Clamp Connection Double Disc Swing Check Valve features
1, the product structure of short length, small size, light weight.
2, the sealing flap can be selected according to different working conditions, soft sealing or hard sealing material, good sealing performance.
3, horizontal or vertical pipe can be used, easy to install.
4, the valve closed quickly, water hammer pressure is small.
5, the material of parts and the valve end face form, size according to the actual conditions or user requirements reasonable matching, to meet the needs of various projects.

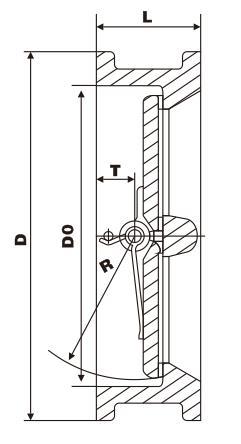

H76H/W Clamp Connection Double Disc Swing Check Valve main dimensions
PN | caliber | Size (mm) | Weight (kg) |
Piping flange (for reference) |
|||||||||
NPS | DN | L | D | D 3 | D 2 |
Bolt hole center circle diameter D 1 |
Number of bolts | Bolt diameter d | Bolt length L 1 | ||||
in | mm | RF | RJ | ||||||||||
Class 150 PN2.0MPa |
2 | 50 | 60 | 103 | 56 | 51 | 2 | 120.5 | 4 | 5/8 | M16 | 140 | 155 |
2 1/2 | 65 | 67 | 122 | 73 | 65 | 3 | 139.5 | 4 | 5/8 | M16 | 150 | 165 | |
3 | 80 | 73 | 135 | 88 | 80 | 4 | 152.5 | 4 | 5/8 | M16 | 160 | 175 | |
4 | 100 | 73 | 173 | 108 | 102 | 6 | 190.5 | 8 | 5/8 | M16 | 170 | 185 | |
5 | 125 | 86 | 195 | 132 | 127 | 8 | 216.0 | 8 | 3/4 | M20 | 190 | 205 | |
6 | 150 | 98 | 220 | 160 | 152 | 13 | 241.5 | 8 | 3/4 | M20 | 205 | 220 | |
8 | 200 | 127 | 277 | 210 | 203 | 25 | 298.5 | 8 | 3/4 | M20 | 240 | 255 | |
10 | 250 | 146 | 337 | 266 | 254 | 39 | 362.0 | 12 | 7/8 | M24 | 270 | 285 | |
12 | 300 | 181 | 407 | 310 | 305 | 54 | 432.0 | 12 | 7/8 | M24 | 310 | 325 | |
14 | 350 | 184 | 448 | 355 | 350 | 80 | 476.0 | 12 | 1 | M27 | 325 | 340 | |
16 | 400 | 191 | 512 | 405 | 400 | 117 | 540.0 | 16 | 1 | M27 | 340 | 355 | |
18 | 450 | 203 | 547 | 455 | 450 | 138 | 578.0 | 16 | 1 1/8 | M30 | 365 | 380 | |
20 | 500 | 219 | 604 | 505 | 500 | 163 | 635.0 | 20 | 1 1/8 | M30 | 385 | 400 | |
24 | 600 | 222 | 715 | 605 | 600 | 331 | 749.5 | 20 | 1 1/4 | M33 | 405 | 420 | |
28 | 700 | 305 | 773 | 700 | 700 | 380 | 795.5 | 40 | 3/4 | M20 | 455 | - | |
30 | 750 | 305 | 824 | 750 | 746 | 425 | 846.0 | 44 | 3/4 | M20 | 455 | - | |
32 | 800 | 305 | 878 | 800 | 796 | 560 | 900.0 | 48 | 3/4 | M20 | 460 | - | |
36 | 900 | 368 | 983 | 910 | 898 | 640 | 1009.5 | 44 | 7/8 | M24 | 540 | - | |
42 | 1050 | 432 | 1142 | 1055 | 1050 | 960 | 1171.5 | 48 | 1 | M27 | 625 | - | |
48 | 1200 | 524 | 1302 | 1205 | 1200 | 1400 | 1335.0 | 44 | 1 1/8 | M30 | 740 | - | |
Class 300 PN5.0MPa |
2 | 50 | 60 | 110 | 58 | 51 | 3 | 127.0 | 8 | 5/8 | M16 | 155 | 175 |
2 1/2 | 65 | 67 | 128 | 73 | 65 | 4 | 149.0 | 8 | 3/4 | M20 | 175 | 195 | |
3 | 80 | 73 | 147 | 88 | 80 | 6 | 168.5 | 8 | 3/4 | M20 | 190 | 210 | |
4 | 100 | 73 | 179 | 108 | 102 | 8 | 200.0 | 8 | 3/4 | M20 | 195 | 215 | |
5 | 125 | 86 | 214 | 132 | 127 | 15 | 235.0 | 8 | 3/4 | M20 | 215 | 235 | |
6 | 150 | 98 | 249 | 160 | 152 | 18 | 270.0 | 12 | 3/4 | M20 | 230 | 250 | |
8 | 200 | 127 | 305 | 210 | 203 | 31 | 330.0 | 12 | 7/8 | M24 | 280 | 300 | |
10 | 250 | 146 | 359 | 266 | 254 | 51 | 387.5 | 16 | 1 | M27 | 315 | 335 | |
12 | 300 | 181 | 420 | 310 | 305 | 77 | 451.0 | 16 | 1 1/8 | M30 | 365 | 385 | |
14 | 350 | 222 | 483 | 355 | 350 | 117 | 514.5 | 20 | 1 1/8 | M30 | 410 | 430 | |
16 | 400 | 232 | 537 | 405 | 400 | 190 | 571.5 | 20 | 1 1/4 | M33 | 435 | 455 | |
18 | 450 | 264 | 594 | 455 | 450 | 200 | 628.5 | 24 | 1 1/4 | M33 | 475 | 535 | |
20 | 500 | 292 | 652 | 505 | 500 | 265 | 686.0 | 24 | 1 1/4 | M33 | 510 | 585 | |
24 | 600 | 318 | 772 | 608 | 600 | 410 | 813.0 | 24 | 1 1/2 | M39 | 560 | - | |
30 | 750 | 368 | 882 | 740 | 735 | 660 | 921.0 | 36 | 1 3/8 | M36 | 650 | - | |
36 | 900 | 483 | 1044 | 880 | 873 | 1020 | 1089.0 | 32 | 1 5/8 | M42 | 800 | - | |
42 | 1050 | 568 | 1196 | 1045 | 1035 | 1540 | 1244.5 | 36 | 1 3/4 | M45 | 920 | - | |
48 | 1200 | 629 | 1365 | 1190 | 1179 | 2260 | 1416.0 | 40 | 1 7/8 | M48 | 1010 | - |
Reminder:
All text, data and pictures in this article are for reference only.To see more details of the H76H/W Clamp Connection Double Disc Swing Check Valve performance parameters, structural dimension parameters, pricing, etc., or to request high quality printing samples, please Contact us.
