H41W/H GB Lifting Check Valve
Product overview
Product model: H41W/H
Nominal diameter: DN50 ~ 400mm
Pressure range: PN10 ~ 160MPa
Operating temperature: -196℃ ~ +560℃
Main material: carbon steel, stainless steel, alloy steel
Design and manufacture: GB12236
Structure length: GB12221
Connection flange: JB/T79-1994
Test and inspection: JB/T9092-1999
H41W/H GB Lifting Check Valve product Overview
H41W/H GB Lifting Check Valve produced and sold by Baigang valve group for medium and small diameter pipeline
pressure, temperature and medium control connected or cut off the
pipeline medium opening and closing device; rely on valve flap weight
and fluid pressure to automatically stop the fluid Backwards.
H41W/H GB Lifting Check Valve features
1,
when the medium flows into the valve body by the arrow of the body, the
pressure of the medium acts on the valve flap to generate an upward
thrust force, and when the medium thrust force is greater than the
gravity of the valve flap, the valve is opened. When the valve medium
pressure on the role of the valve with the force of the valve itself is
greater than the pressure before the valve pressure on the role of the
valve, the valve closed to prevent the media back.
2, GB lifting check valve has the advantages of simple structure,
reliable operation, easy maintenance, etc., widely used in purification
equipment, petroleum, chemical, metallurgy, electric power, textile and
other production processes.
H41W/H GB Lifting Check Valve performance specifications
| Body material |
Nominal pressure (MPa) |
Working temperature (℃) |
Suitable media | |
| Carbon steel | 1.6-6.4 | ≤425 | Water, oil, steam | |
| 10.0,16.0 | ≤450 | / | ||
| Stainless steel | P | 1.6-16.0 | ≤200 | Nitric acids |
| R | / | / | Acetic acid | |
|
Chrome nickel-titanium heat-resistant steel |
PI | 1.6-6.4 | ≤550 | Oil, petroleum products |
| Chrome-molybdenum steel | 1.6-16.0 | ≤550 | oil | |

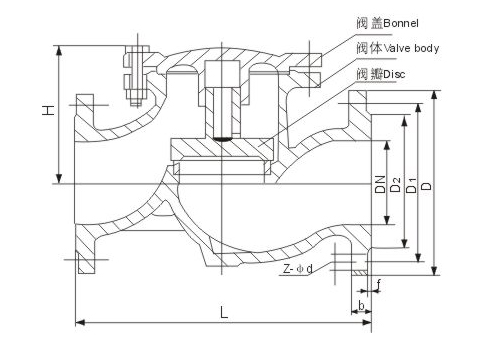

H41W/H GB Lifting Check Valve main dimensions
| PN | DN | The main connection size |
Overall dimensions |
||||||||
| L | D | D 1 | D 2 | D 6 | b | f | f 1 | Z-φd | H | ||
| 1.6MPa | 40 | 200 | 145 | 110 | 85 | - | 16 | 2 | - | 4-18 | 95 |
| 50 | 230 | 160 | 125 | 100 | - | 16 | 2 | - | 4-18 | 105 | |
| 65 | 290 | 180 | 140 | 120 | - | 18 | 2 | - | 4-18 | 120 | |
| 80 | 310 | 195 | 165 | 135 | - | 20 | 3 | - | 8-18 | 130 | |
| 100 | 350 | 215 | 180 | 155 | - | 20 | 3 | - | 8-18 | 140 | |
| 125 | 400 | 245 | 210 | 185 | - | 22 | 3 | - | 8-12 | 155 | |
| 150 | 480 | 280 | 240 | 210 | - | 24 | 3 | - | 8-23 | 180 | |
| 200 | 600 | 335 | 295 | 265 | - | 26 | 3 | - | 12-23 | 215 | |
