GJ641X-6L Pneumatic Pipe Clamp Valve
Product overview
Product model: GJ641X-6L
Nominal diameter: DN25~300mm
Applicable temperature: ≤80℃,≤120℃
Nominal pressure: PN0.4, 0.6Mpa
Applicable medium: pulp, abrasive, dry and wet dust

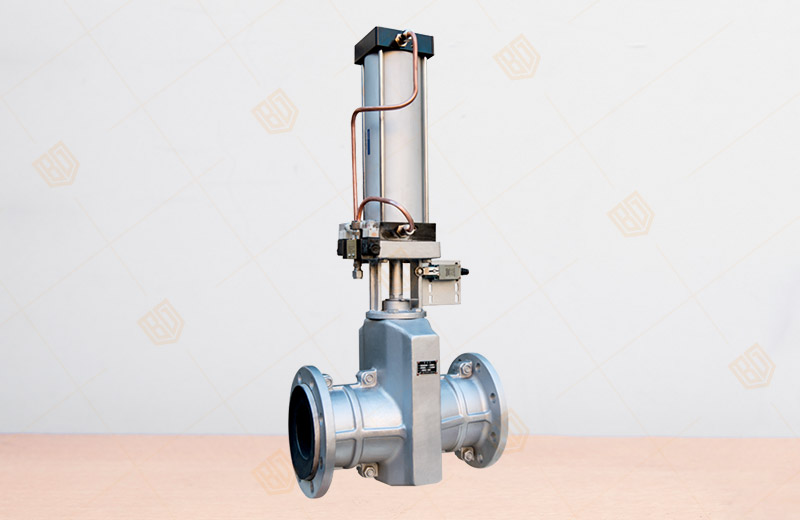

GJ641X-6L Pneumatic Pipe Clamp Valve product overview
GJ641X-6L Pneumatic Pipe Clamp Valve main performance specifications
proper temperature |
Suitable media |
≤80 ℃ |
Pulp, abrasive, dry and wet type of dust and other general corrosive media |
≤120 ℃ |
Water, acid and alkali and other corrosive media |
GJ641X-6L Pneumatic Pipe Clamp Valve main part material
name |
material |
Body |
Aluminum, cast iron, cast steel, stainless steel |
casing |
Natural rubber, EPDM rubber |
Valve stem |
Carbon steel |
Pressure bar |
cast iron |
Handwheel |
Carbon steel |
bracket |
Carbon steel |
GJ641X-6L Pneumatic Pipe Clamp Valve main form of connection size (mm)
Nominal diameter (DN) |
Nominal pressure (MPa) |
Work pressure (MPa) |
L |
L1 |
L0 |
D |
D1 |
D0 |
H |
Z-Φ |
25 |
0.6 |
0.6 |
145 |
124 |
31 |
115 |
85 |
120 |
150 |
4-14 |
32 |
160 |
145 |
40 |
* 140 |
100 |
140 |
174 |
4-18 |
||
40 |
180 |
157 |
50 |
* 150 |
110 |
140 |
186 |
4-18 |
||
50 |
210 |
160 |
60 |
160 |
125 |
160 |
205 |
4-18 |
||
65 |
250 |
199 |
74 |
180 |
145 |
160 |
238 |
4-18 |
||
80 |
300 |
222 |
88 |
195 |
160 |
200 |
241 |
4-18 |
||
100 |
350 |
250 |
106 |
215 |
180 |
240 |
301 |
8-18 |
||
345 |
||||||||||
360 |
||||||||||
250 |
||||||||||
125 |
430 |
318 |
134 |
245 |
210 |
280 |
360 |
8-18 |
||
150 |
500 |
350 |
158 |
280 |
240 |
320 |
405 |
8-23 |
||
510 |
||||||||||
380 |
||||||||||
200 |
0.4 |
0.4 |
650 |
446 |
206 |
335 |
295 |
560 |
545 |
8-23 |
500 |
||||||||||
250 |
800 |
516 |
256 |
395 |
350 |
560 |
632 |
12-23 |
||
300 |
950 |
562 |
304 |
445 |
400 |
620 |
741 |
12-23 |
Reminder:
All text, data and pictures in this article are for reference only.To see more details of the GJ641X-6L Pneumatic Pipe Clamp Valve performance parameters, structural dimension parameters, pricing, etc., or to request high quality printing samples, please Contact us.
