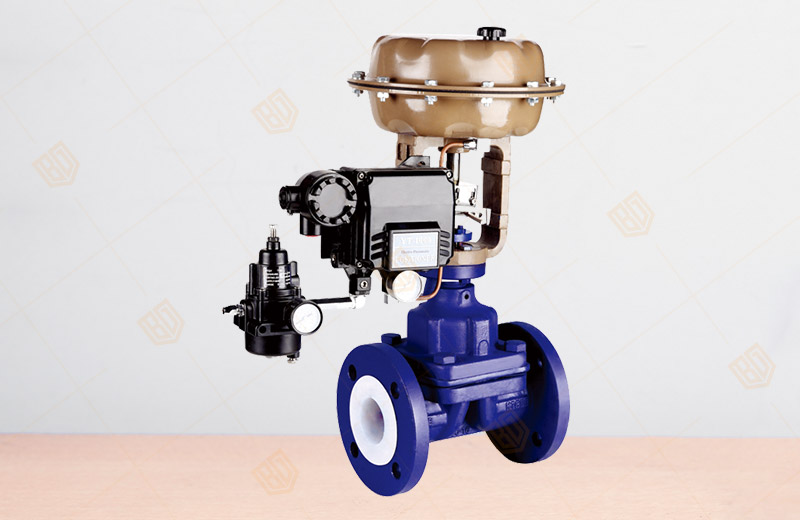

G641F46 Pneumatic Fluorine Lined Diaphragm Valve
Product overview
Product model: G641F46
Nominal diameter: DN15~300mm
Nominal pressure: PN0.6~2.5MPa
Main material: gray cast iron, ultra-low carbon stainless steel, carbon steel, stainless steel
Drive mode: electric, pneumatic, manual
Design and manufacture: BS5156
Structure length: BS5156
Flange connection size: BS4504, DIN2532, JIS B2212, ANSI B16.1, ISO2004
G641F46 Pneumatic Fluorine Lined Diaphragm Valve summary
G641F46 Pneumatic Fluorine Lined Diaphragm Valve produced and sold by Baigang valve group is composed of diaphragm valve and pneumatic actuator. It is powered by compressed air and can adjust the flow of the fluid medium in the process pipeline.Pneumatic diaphragm valve lining fluorine due to adopt in the structure with corrosion resistant lining of the body and the corrosion resistance of the diaphragm, no stuffing box structure, throttling element for elastic diaphragm, the body flow is smooth, so the diaphragm valve pneumatic film is Yin force is small, large flow, no leakage, and the advantages of convenient and reliable, fire blast, pneumatic diaphragm valve lining fluorine is widely used in industrial automation system of strong acid, strong alkali, strong corrosion, high viscosity, containing clever grain, with fiber and toxic and not allow pollution medium flow control.
G641F46 Pneumatic Fluorine Lined Diaphragm Valve main parts and materials
| Serial number | Part Name | grey cast iron | Carbon steel | stainless steel | Ultra-low carbon stainless steel | ||
| Z | C | P | R | PL | RL | ||
| 1 | Body, bonnet, disc | HT250 | WCB | CF8 | CF8M | CF3 | CF3M |
| 2 | Valve stem | 35 | 1Cr13 | 1Cr18Ni9 | 1Cr18Ni12Mo2Ti | 00Cr18Ni10 | 00Cr17Ni14Mo2 |
| 3 | Lining layer | FEPF46, PFA (soluble polytetrafluoroethylene), PCTFE (F3), PO (polyolefin) | |||||
| 4 | Diaphragm | FEPF46, PFA (soluble polytetrafluoroethylene), CR (neoprene), EPDM (ethylene propylene rubber) | |||||
| 5 | Stem nut | ZcuAl10Fe3 | |||||
| 6 | bolt | 35 | 35 | 1Cr17Ni2 | 1Cr17Ni2 | 1Cr17Ni2 | 1Cr17Ni9Ti |
| 7 | Nut | 45 | 45 | 0Cr18Ni9 | 0Cr18Ni9 | 0Cr18Ni9 | 0Cr18Ni9 |
G641F46 Pneumatic Fluorine Lined Diaphragm Valve technical parameters
| Nominal diameter DN (mm) | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | |
| Rated flow coefficient Kv | 8 | 12 | 16 | 28 | 60 | 68 | 90 | 160 | 300 | 410 | 618 | 1200 | 2150 | |
| Flow characteristics | Approximate quick opening characteristics | |||||||||||||
| Nominal pressure PN (MPa) | 0.6, 1.0, 1.6, 2.5 | |||||||||||||
| Connection Type | Flange connection: PN1.0 according to JB78 standard | |||||||||||||
| Equipped with actuator model | ZHA, ZHB | |||||||||||||
| Effective area Fece2 | 280 | 400 | 600 | 1000 | ||||||||||
| Travel Lmm | 8 | 10 | 16 | 25 | 40 | 60 | ||||||||
| Mode of action | Qi off; open air | |||||||||||||
| Spring pressure range (KPa) | Standard 20-100, optional 40-200,20-60,60-100 | |||||||||||||
| Supply pressure (MPa) | Standard 0.14 optional 0.24 | |||||||||||||
| Air source connector | M16 × 1.5 | |||||||||||||
| Inherent adjustable R | 30: 1 | |||||||||||||
| Operating temperature | -30 ~ + 150 ℃ | |||||||||||||
G641F46 Pneumatic Fluorine Lined Diaphragm Valve main dimensions
|
standard value |
||||||||||||||
|
DN (mm) |
NPS (inch) |
L |
D |
D1 |
D2 |
f |
b |
Z-фd |
d0 |
H |
H1 |
WT (kg) |
||
|
15 |
1/2 |
125 |
95 |
65 |
45 |
2 |
14 |
4-ф14 |
100 |
105 |
110 |
3.5 |
||
|
20 |
3/4 |
135 |
105 |
75 |
55 |
2 |
16 |
4-ф14 |
100 |
115 |
125 |
4 |
||
|
25 |
1 |
145 |
115 |
85 |
65 |
2 |
16 |
4-ф14 |
120 |
120 |
135 |
5.5 |
||
|
32 |
11/4 |
160 |
135 |
100 |
78 |
2 |
18 |
4-ф18 |
120 |
125 |
150 |
8 |
||
|
40 |
11/2 |
180 |
145 |
110 |
85 |
3 |
18 |
4-ф18 |
140 |
135 |
175 |
11 |
||
|
50 |
2 |
210 |
160 |
125 |
100 |
3 |
20 |
4-ф18 |
140 |
155 |
195 |
14 |
||
|
65 |
21/2 |
250 |
180 |
145 |
120 |
3 |
20 |
4-ф18 |
200 |
170 |
200 |
23 |
||
|
80 |
3 |
300 |
195 |
160 |
135 |
3 |
21 |
4-ф18 |
200 |
200 |
255 |
29 |
||
|
100 |
4 |
350 |
215 |
180 |
155 |
3 |
21 |
8-ф18 |
280 |
270 |
325 |
46 |
||
|
125 |
5 |
400 |
245 |
210 |
185 |
3 |
24 |
8-ф18 |
320 |
335 |
405 |
70 |
||
|
150 |
6 |
460 |
280 |
240 |
210 |
3 |
24 |
8-ф23 |
320 |
370 |
450 |
95 |
||
|
200 |
8 |
570 |
335 |
295 |
265 |
3 |
26 |
8-ф23 |
400 |
480 |
600 |
170 |
||
|
250 |
10 |
680 |
390 |
350 |
320 |
3 |
28 |
12-ф23 |
500 |
545 |
620 |
270 |
||
|
300 |
12 |
790 |
435 |
395 |
362 |
4 |
24 |
12-ф23 |
500 |
585 |
680 |
320 |
||
Reminder:
All text, data and pictures in this article are for reference only.To see more details of the G641F46 Pneumatic Fluorine Lined Diaphragm Valve performance parameters, structural dimension parameters, pricing, etc., or to request high quality printing samples, please Contact us.
