H41F46-16C Lift Lined Fluorine Check Valve
Product overview
Product model: H41F46-16C
Nominal diameter: DN15~300mm
Pressure grade: PN0.6, 1.0, 1.6MPa
Applicable temperature: ≤85℃, ≤100℃, ≤120℃, ≤150℃, (according to the lining material)
Design and manufacture: GB12235
Structure length: GB12221
Flange connection size: GB4216
H41F46-16C Lift Lined Fluorine Check Valve product Usage
H41F46-16C Lift Lined Fluorine Check Valve produced and sold by Baigang valve group is specially used for controlling strong corrosive medium. The inner surface of the valve body is covered with various fluoroplastics for selection, which has the characteristics of high strength and good corrosion resistance. Suitable for different working temperature and fluid lines, to prevent all types of pipelines or equipment on the one-way reversal of media opening and closing.
H41F46-16C Lift Lined Fluorine Check Valve test
lining: spark testing
and testing according to GB / T13927 standard
Nominal pressure: PN Body: PN × 1.5 Seal: PN × 1.1
H41F46-16C Lift Lined Fluorine Check Valve main part material
Upper Body: Cast Iron, Ductile Iron, Carbon Steel Cover: Cast Iron, Ductile Iron, Carbon Steel Lining: Fluoroplastic
Valve Discs: Carbon Steel Fully Fluoropolymer
H41F46-16C Lift Lined Fluorine Check Valve parts list

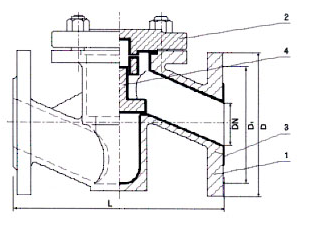

1, the valve body, 2, valve cover 3, the valve body lining 4, the main dimensions of the valve
Nominal diameter | Nominal pressure | Work pressure | L | D | D1 | n-Фd |
15 |
1.6 |
1.6 |
130 |
95 |
65 |
4-13.5 |
20 |
150 |
105 |
75 |
4-13.5 |
||
25 |
160 |
115 |
85 |
4-13.5 |
||
32 |
180 |
140 |
100 |
4-17.5 |
||
40 |
200 |
150 |
110 |
4-17.5 |
||
50 |
230 |
165 |
125 |
4-17.5 |
||
65 |
290 |
185 |
145 |
4-17.5 |
||
80 |
310 |
200 |
160 |
6 / 2-17.5 |
||
100 |
350 |
220 |
180 |
6 / 2-17.5 |
||
125 |
400 |
250 |
210 |
6 / 2-17.5 |
||
150 |
480 |
285 |
240 |
6 / 2-22 |
||
200 |
600 |
340 |
295 |
6 / 2-22 |
||
250 |
730 |
395 |
350 |
10 / 2-22 |
||
300 |
850 |
445 |
400 |
10 / 2-22 |
