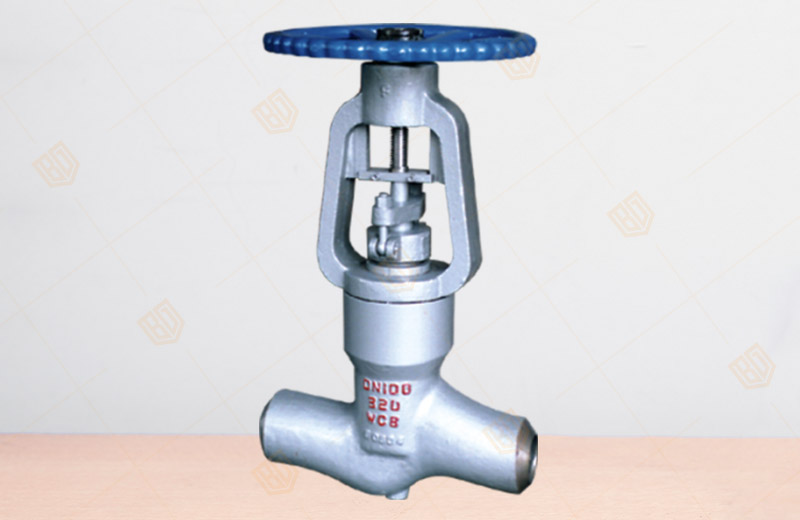

J61Y Power Station Globe Valve
Product overview
Product model: J61Y
Nominal diameter: DN20~300mm
Nominal pressure: PN1.6~3.2MPa
Main material: cast steel, stainless steel, forged steel, chromium molybdenum steel, chromium molybdenum vanadium steel
Drive mode: manual, electric
Design and manufacture: E101, JB/T3595, DL/T531
Structure length: E101, JB/T2766, GB/T15188.1
Pressure-temperature rating: E101, JB/T3595
Welding groove size: GB12224, JB/T3595, ASME B16.2
J61Y Power Station Globe Valve - Product Description
J61Y Power Station Globe Valve produced and sold by Baigang valve group is the opening and closing device with heat sink, using butt welding and pipe welding, suitable for high temperature and pressure applications. Nominal pressure: 16,25,32 MPa Suitable temperature: 425 ℃ 450 ℃ 500 ℃ 540 ℃, mainly used in steel, metallurgy, power plants, thermal power and other enterprises.
J61Y Power Station Globe Valve - Main parts material
model |
Body |
cap |
Disc |
Seat |
Valve stem |
filler |
Suitable media |
proper temperature |
J61Y- (320) |
A105 |
2Cr13 + Stellite12 |
D507Mo |
2Cr13 |
Flexible graphite |
steam |
425 |
|
J61Y- (320) PI |
Ocr18Ni9Ti (F321) |
321+ Stellite12 |
Stellite6 |
321 |
Flexible graphite |
steam |
540 |
|
J61Y-P54 (170) |
12CrLMoV |
12CrMoV + Stellite12 |
Stellite6 |
25CrMo1Va |
Flexible graphite |
steam |
570 |
J61Y Power Station Globe Valve - Main dimensions
model |
Nominal diameter |
Nominal diameter |
standard value |
||||||||
L |
d |
D1 |
D2 |
h |
Do |
H |
H1 |
Quality (kg) |
|||
J61Y-320 |
32 |
10 |
110 |
10 |
12 |
24 |
13.5 |
160 |
215 |
36 |
5.7 |
J61Y-P54170 |
P5417 |
10 |
110 |
10 |
12 |
24 |
13.5 |
160 |
215 |
36 |
5.7 |
J61Y-320 |
32 |
15 |
150 |
113 |
16 |
35 |
12 |
200 |
247 |
45 |
10.5 |
J61Y-320PI |
32 |
15 |
150 |
13 |
16 |
35 |
12 |
200 |
247 |
45 |
10.5 |
J61Y-P54200V |
P5420 |
15 |
150 |
13 |
16 |
35 |
12 |
200 |
247 |
45 |
10.5 |
J61Y-320 |
32 |
20 |
150 |
19 |
22 |
35 |
18 |
200 |
247 |
47 |
9.9 |
J61Y-P54170V |
P5417 |
20 |
150 |
19 |
22 |
35 |
18 |
200 |
247 |
47 |
9.9 |
J61Y-320 |
32 |
25 |
180 |
20.5 |
24 |
52 |
21 |
240 |
290 |
66 |
13.2 |
J61Y-320PI |
32 |
25 |
180 |
20.5 |
24 |
52 |
21 |
240 |
290 |
66 |
13.2 |
J61Y-P54200V |
P5420 |
25 |
180 |
20.5 |
24 |
52 |
21 |
240 |
290 |
66 |
13.2 |
J61Y-320 |
32 |
32 |
180 |
27 |
31 |
52 |
24 |
240 |
282 |
66 |
12.8 |
J61Y-P54170V |
P5417 |
32 |
180 |
27 |
31 |
52 |
24 |
240 |
282 |
66 |
12.8 |
Reminder:
All text, data and pictures in this article are for reference only.To see more details of the J61Y Power Station Globe Valve performance parameters, structural dimension parameters, pricing, etc., or to request high quality printing samples, please Contact us.
