H664Y Extraction Check Valve
Product overview
Product model: H664Y
Nominal diameter: DN50 ~ 1000mm
Nominal pressure: Pn1.0 ~ 10.0MPa
Operating temperature: ≤550℃
Main material: WCB, WC6, WC9
Applicable medium: water, steam, air, oil
Design standard: API 6D, BS 1868, GB/T 12235, GB/T 12236, JB/T 8937
Structure Length: ASME B16.10, API 6D, GB/T 12221
Connection standard: ASME B16.5, ASME B16.47, ASME B16.25, GB/T 9113, JB/T 79, HG/T 20592
Pressure test: API 598, API 6D, GB/T 13927, GB/T 26480
Pressure and temperature rating: ASME B16.34, GB/T 12224
First, H664Y extraction check valve purposes
H664Y Extraction Check Valve performance specifications
1, the nominal pressure:
Nominal pressure | 1.0 ~ 2.5 | 4.0 ~ 6.4 | 10.0 |
Nominal diameter | 50 ~ 1000 | 50 ~ 400 | 80 ~ 350 |
2, the medium: water, steam, air, oil
3, the working temperature:
The main material | WCB | WC6 | WC9 |
Operating temperature | ≤425 ℃ | ≤540 ℃ | ≤550 ℃ |

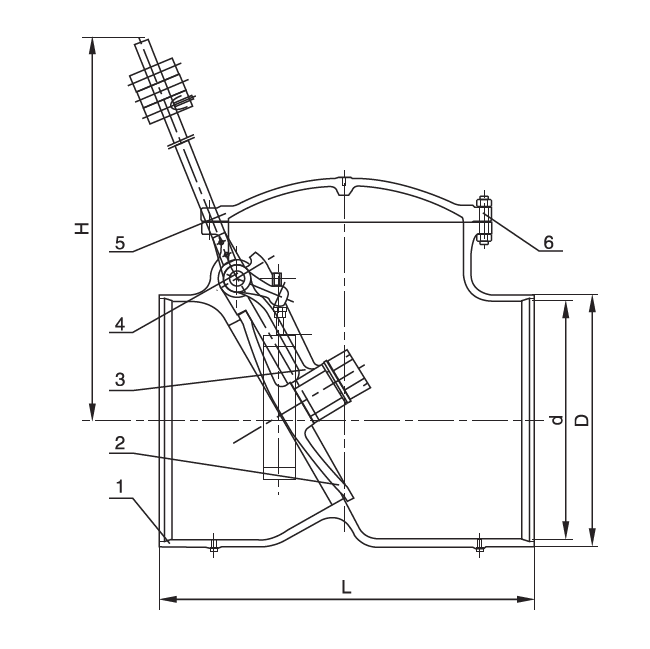

H664Y Extraction Check Valve main dimensions
H664H-10 | ||||||||||
DN | L | D | D1 | D2 | H | H1 | H2 | H3 | L1 | W (kg) |
450 | 740 | 428 | 476 | 630 | 990 | 425 | 510 | 755 | 486 | 620 |
500 | 790 | 468 | 520 | 658 | 990 | 470 | 545 | 852 | 554 | 759 |
700 | 1040 | 682 | 747 | 845 | 990 | 560 | 625 | 1240 | 820 | 1258 |
800 | 1295 | 780 | 842 | 995 | 1257 | 650 | 645 | 1348.3 | 928 | 1788 |
1000 | 1600 | 1110 | 1150 | 1230 | 1700 | 850 | 745 | 1840 | 1040 | 4800 |
H664H-16 | ||||||||
DN | L | D | D1 | D2 | H | H1 | H2 | W (kg) |
200 | 526 | 195 | 239 | 410 | 815 | 325 | 390 | 236 |
300 | 610 | 300 | 354 | 494 | 845 | 350 | 445 | 376 |
400 | 838 | 380 | 436 | 600 | 1142 | 450 | 490 | 674 |
H664H-25 | ||||||||
DN | L | D | D1 | D2 | H | H1 | H2 | W (kg) |
250 | 680 | 250 | 302 | 475 | 904 | 380 | 440 | 385 |
500 | 1020 | 480 | 584 | 820 | 1240 | 580 | 560 | 1537 |
Reminder:
All text, data and pictures in this article are for reference only.To see more details of the H664Y Extraction Check Valve performance parameters, structural dimension parameters, pricing, etc., or to request high quality printing samples, please Contact us.
