Z41X Rising Stem Soft Seal Gate Valve
Product overview
Product model: Z41X
Nominal diameter: DN15-600 mm
Nominal pressure: PN1.6~2.5MPa
Applicable temperature: 0 ~ 80℃
Applicable medium: water
Body material: ductile iron, etc
Drive mode: manual, electric, pneumatic, etc
Flange standard: GB/T 17241.6GB9113
Test standard: GB13927 AP1598
Z41X Rising stem soft seal gate valve product overview
Third, open-rod soft seal gate valve main performance parameters
Pressure Level | 1.0 MPa, 1.6 MPa, 2.5 MPa |
Body pressure | 1.5MPa, 2.4MPa, 3.75MPa |
Seal test | 1.1 MPa, 1.76 MPa, 2.75 MPa |
Operating temperature | 0 ~ 80 ℃ |
Suitable media | water |
Z41X Rising stem soft seal gate valve parts of the main material
Serial number | name | material | Serial number | name | material |
1 | Body | Ductile iron | 8 | Thrust pad | Tin bronze |
2 | gate | Ductile iron coated EPDM | 9 | Sleeve | Tin bronze |
3 | bolt | Galvanized | 10 | bolt | Galvanized |
4 | Sealing ring | NBR | 11 | Shaft cover | Ductile iron |
5 | cap | Ductile iron | 12 | Dust cover | NBR |
6 | Valve stem | stainless steel | 13 | Handwheel | cast iron |
7 | "O" ring | NBR | 14 | Tighten the nut |

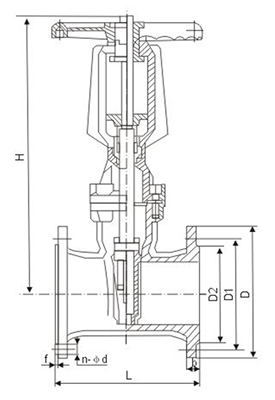

Z41X Rising stem soft seal gate valve main dimensions of connection
DN |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
400 |
L |
178 |
190 |
203 |
229 |
254 |
267 |
292 |
330 |
356 |
381 |
406 |
HA |
322 |
332 |
350 |
420 |
581 |
581 |
736 |
882 |
1009 |
1300 |
1380 |
HC |
374 |
398 |
429 |
524 |
721 |
736 |
942 |
1031 |
1117 |
1655 |
1805 |
Reminder:
All text, data and pictures in this article are for reference only.To see more details of the Z41X Rising Stem Soft Seal Gate Valve performance parameters, structural dimension parameters, pricing, etc., or to request high quality printing samples, please Contact us.
